Ducting Supports

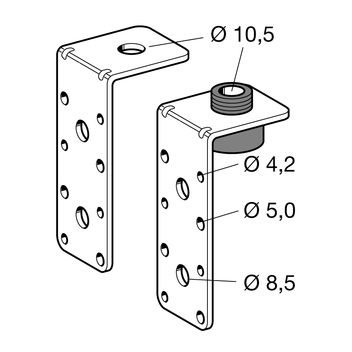

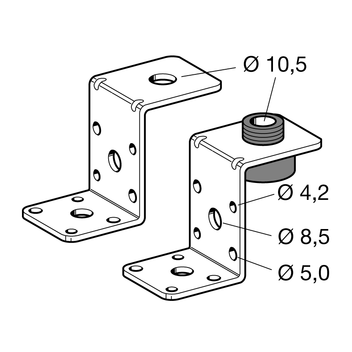

Ducting Angle LUW A

Application

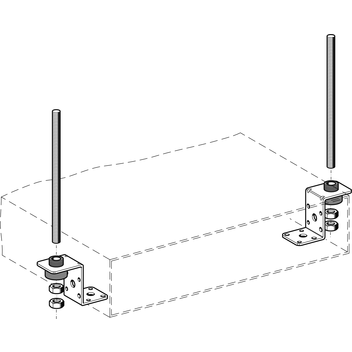

Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.
Types A-SL and A-SZ allow for soundproof installation also according to DIN 4109.

Scope of delivery

Types A-SL and A-SZ are equipped with pre-assembled sound absorption head.

Installation

Fixing to the duct with rivets (ø 4 - 5 mm), sheet metal screws (ø 4 - 5 mm) or M8 bolts.

Technical Data

Working load:
0.5 kN for A-L and A-Z
0.3 kN for A-SL and A-SZ
Material (metal component):
Steel, pre-galvanised
Types A-SL and A-SZ:
Inserted insulation:

Up to 8.7 dB(A)
Sound absorption unit:
EPDM, black
Hardness:
50+ / -5° Shore
Temperature range:
-50°C up to +100°C
TypeConnection
to building
structure
Material
[mm]
Length
of legs
[mm]
W
[kg]
Quantity
[pack]
Part
number
A-LM8/M1035 x 235/850.05100 110496
A-ZM8/M1035 x 235/46/380.05100 110498
A-SLM8/M1035 x 235/850.06100 110497
A-SZM8/M1035 x 235/46/380.06100 110499
