Structural Elements 120

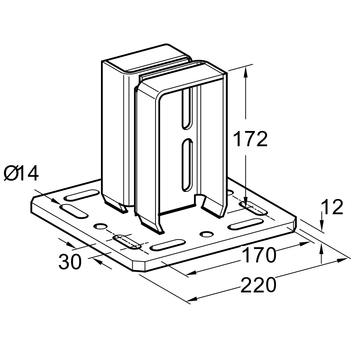

End Support STA 120

Application

In combination with Beam Bracket TKO 120, the End Support enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of oblong holes a simple compensation of structural deviations is possible up to 50 mm.

Scope of delivery

End Support STA 120
Accessories:
4 Hexagon bolts M12 x 40
8 Washers

Technical Data

Thickness of base plate
[mm]
Slot in base for
220 x 220 x 12 M12


Material:
STA 120:
Steel, hot-dipped galvanised
Bolts:
Steel, class 8.8, hot-dipped galvanised
Nuts:
Steel, class 8, hot-dipped galvanised
Washers:
Steel, hot-dipped galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
STA 1206.81 193211
