Structural Elements 120

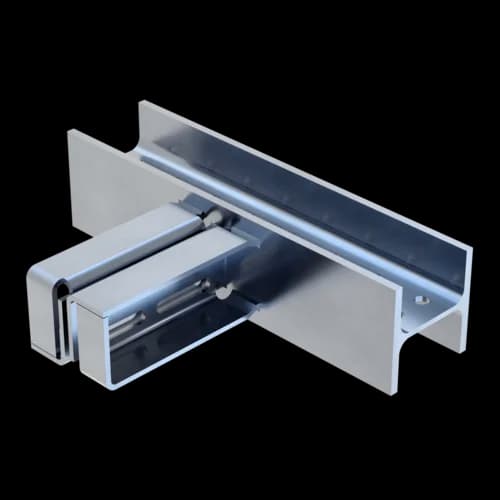

T-Adapter TA 120

Application

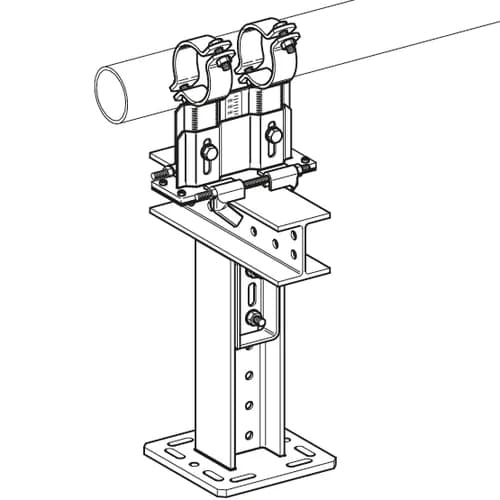

In combination with Beam Bracket TKO 120, the T-Adapter permits different T-structures on the floor or hanging T-structures without need of further accessories. Oblong holes permit a simple compensation up to 50 mm on structural situations.

Scope of delivery

T-Adapter TA 120
Accessories:
4 Hexagon bolts M12 x 40
4 Hexagon nuts M12
8 Washers

Technical Data

Configuration:
Beam section 120 welded to beam holder
Material:
TA 120:
Steel, hot-dipped galvanised
Bolts:
Steel, class 8.8, hot-dipped galvanised
Nuts:
Steel, class 8, hot-dipped galvanised
Washers:
Steel, hot-dipped galvanised
TypeL
[mm]
W
[kg]
Quantity
[pack]
Part
number
TA 120 x 2002008.11 193112
TA 120 x 40040014.01 193129
TA 120 x 60060019.01 193136
