INNOVATIVE PIPE
SUPPORT SOLUTIONS
Sound Absorption Products

Rubber Profile SAL SBR/EPDM

Application

Sound absorption lining for steel straps and pipe clamps (also according to DIN 4109).

Application up to +110°C.

Technical Data

Material:
SBR/EPDM, black
Hardness:
45+/-5° Shore
Temperature range:
-50°C up to +110°C
Breaking elongation:
560 %
Tear strength:
500 N/cm2
Impact absorption:
39 %
Fire resistance:
Material category B2 (DIN 4102),
non-dripping
Sound absorption:
Up to18 dB(A) (from height 4.5 mm on)
Surface resistance:
2 x 1013 Ohm
Volume resistance:
2 x 1013 Ohm
Fully resistant to:
Diluted acids, lyes, alkaline solutions, water, aqueous solutions up to 70°C;
No absorption of moisture
Partially resistant to:
Grease, mineral oil, animal or vegetable fats, ester and ketones
Not resistant to:
Hot oils, fuels, aliphatic and aromatic hydrocarbons and chloric gas
Durability:
Weatherproof, ageing and ozone-resistant, DIN 53508 and 53509 tested

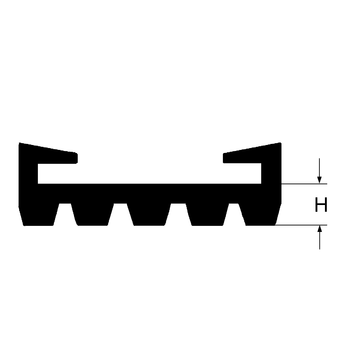

TypeSteel strap
[mm]
H
[mm]
Number of
ribs
Weight
[kg/m]
Quantity
roll
[m]
Part
number
STD 125 x 3.04.540.2230 146502
STD 230 x 3.04.040.2330 146511
STD 340 x 4.06.050.3730 146520
STD 450 x 5.07.050.5430 146539
STD 570 x 6.07.070.6530 146548
