INNOVATIVE PIPE
SUPPORT SOLUTIONS
Slide Supports

Slide Element GLE LC

Application

Suspension slide element which can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels.

  • Pendular function allows for slight lateral movements.
  • The slide roller located in the suspending section provides for smooth, jerk-free and silent sliding.

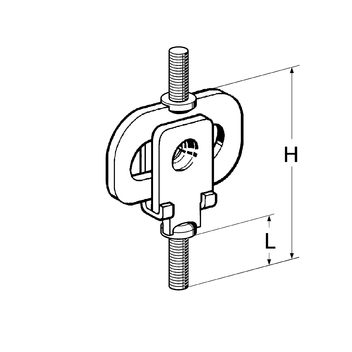

  • Type LC-A is suitable for insulation thicknesses up to 25 mm.

Scope of delivery

Completely pre-assembled.

Installation

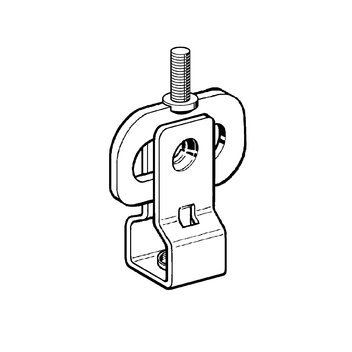

Type LC-I allows for height adjustment by offering a screw depth of up to 15 mm.
For fixing the position of the Slide Element, a locking nut has to be used.

Technical Data

Working load (tension):
1 kN
Sliding distance:
Max. 25 mm
Maximum swinging angle:

Material:
Steel, electro-galvanised

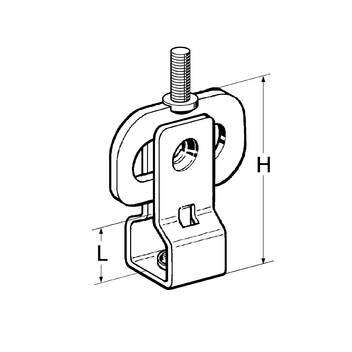

Type
Thread connection to
building structure
Thread connection to
system x L
Height H
[mm]
LC-A 22 M8 x 22 M8 x 22 76
LC-I M8 x 22 M8 /15* 68

* range for height adjustment

TypeW
[kg]
Quantity
[pack]
Part
number
LC-A 220.09100 151069
LC-I0.09100 151078
