Sign System

Printed Sign Plate LOG

Application

Sign plate to be printed according to your specifications. Compatible with Universal, Welding and Screw Holders. Can simply be fitted into the cover and does not need to be aligned or fixed.
Size of plate 50 x 100 mm.

Scope of delivery

The signs could be printed with your company logo and text according to your specifications.
Delivery time: 10 working days

Version
Type of plate
A
Plate white
B

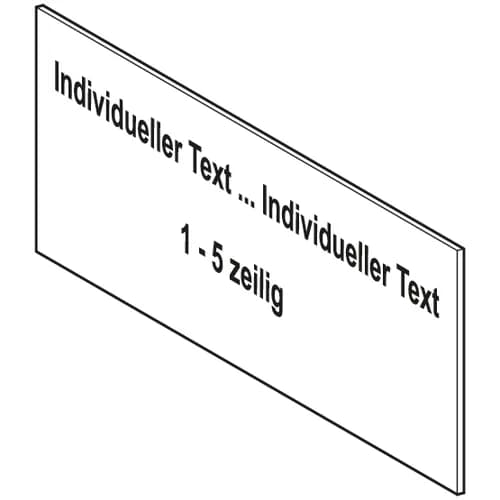

Plate with text 1 to 5 lines
C
Plate with customer logo
D

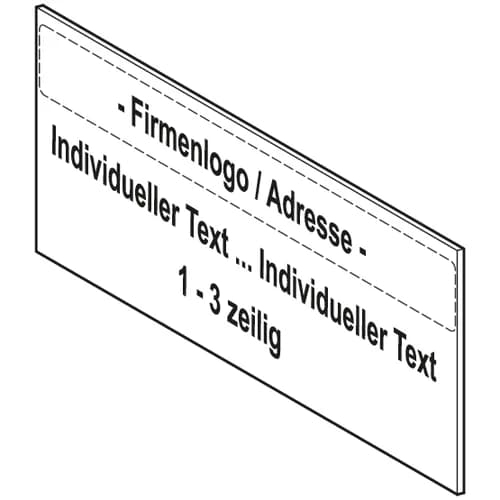

Plate with customer logo and text 1 to 3 lines

Note:
Versions C and D optionally with company address
Versions B and D max. 50 characters per line

Requirements for orders:
A
B
C
D
Graphic: 95 mm x 14 mm, mind. 240 dpi
png-file (transparent background)
Color space: RGB or CMYK
   x x
Excel sheet for individual texts   x   x

The order form for your individual texts can be downloaded from the website.
If needed we can also supply all signs as selfadhesive versions.

TypeVersion Part
number
Plate: whiteA 181235

Plate: white, Font: blackB 110842
Plate: yellow, Font: blackB 110843
Plate: yellow, Font: whiteB 110845
Plate: red, Font: blackB 110846
Plate: red, Font: whiteB 110847
Plate: magenta, Font: whiteB 110849
Plate: cyan, Font: blackB 110850
Plate: cyan, Font: whiteB 110851
Plate: dark blue, Font: whiteB 110852
Plate: green, Font: blackB 110854
Plate: green, Font: whiteB 110855

Plate: white, LogoC 110815
Plate: yellow, LogoC 110816
Plate: red, LogoC 110819
Plate: magenta, LogoC 110821
Plate: cyan, LogoC 110823
Plate: dark blue, LogoC 110825
Plate: green, LogoC 110828

Plate: white, Font: black, LogoD 110829
Plate: yellow, Font: black, LogoD 110830
Plate: yellow, Font: white, LogoD 110831
Plate: red, Font: black, LogoD 110832
Plate: red, Font: white, LogoD 110833
Plate: magenta, Font: black, LogoD 110834
Plate: magenta, Font: white, LogoD 110836
Plate: cyan, Font: black, LogoD 110837
Plate: cyan, Font: white, LogoD 110838
Plate: dark blue, Font: white, LogoD 110839
Plate: green, Font: black, LogoD 110840
Plate: green, Font: white, LogoD 110841
