End Support STA F 100-80-E 45°
The End Support STA F 100-80-E 45° is designed to generate a 45° bracing element in combination with F100 Beam Sections or F100 Cantilever Brackets.
Depending on the situation on site there are two options to use this product:

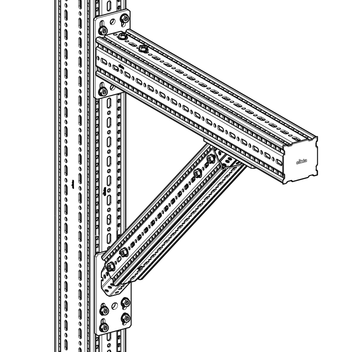

|a)|| Connection within the siFramo system by connecting with 4 FLS |
screws to each beam section F100.

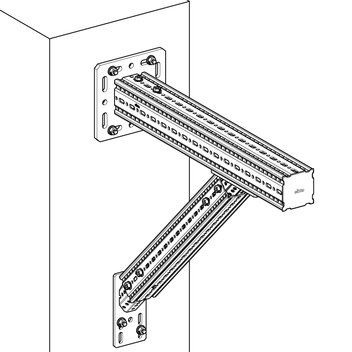

|b)|| Connection to building fabric by using 2 suitable wall anchors in |

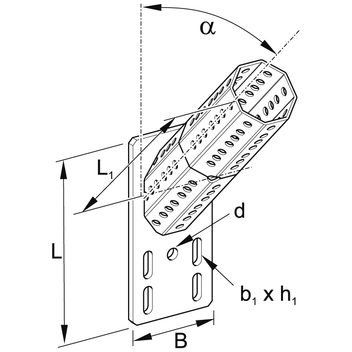

| Type|| L|
|STA F 100-80-E 45°||210||100||244.5||14||11||20||45|
| Configuration:|| Base Plate welded to octagonal F 80|
| Material: ||Steel, HCP|
Approvals / Conformity
CE-mark (Declaration of performance www.sikla.com/downloads)
Declaration of performance End Support STA F PDF | 189.6 KB
