Pressix CC 41 - Assembly System

End Support WBD 41/21-31

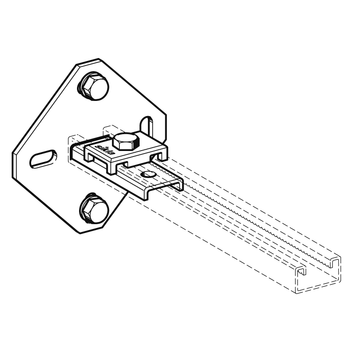

End Support WBD

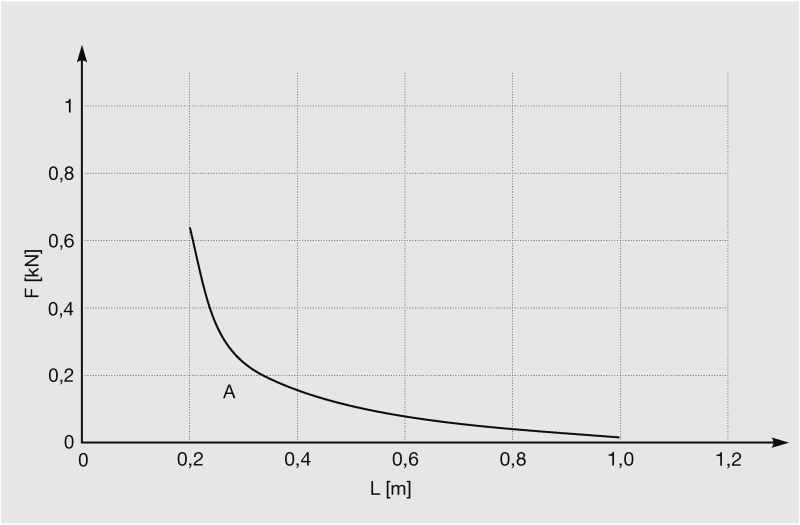

Load chart only applicable in combination with Channel 41/21/2.0 or 41/31/2.0

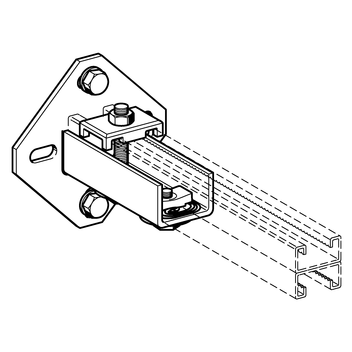

End Support WBD 41/21 D

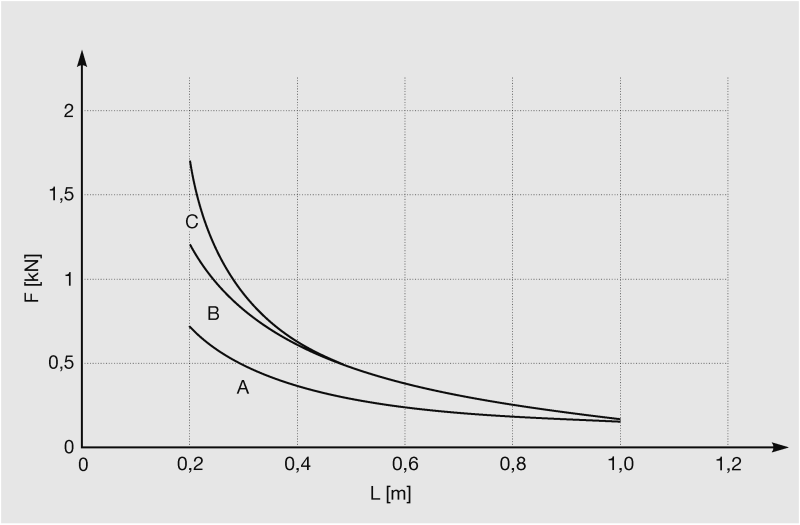

Load chart only applicable in combination with Channel 41/21/2.0 D


Restrictions
σperm ≤ 160 N/mm2
fperm ≤ L/100 for L > 300 mm
fperm ≤ 3 mm for L = 200 ... 300 mm
Anchor loads
A = 1.5 kN
B = 2.5 kN
C = 3.5 kN
D = 6.0 kN
E = 9.0 kN
