Application

In particular useful for installation in vertical channels or where access is difficult.
Further advantages:

  • Can be used in all Sikla Channels MS 27, independent of the channel's height.
  • No getting stuck on bolt heads when sliding in the channel.
  • No appearance of settlement after tightening.

Scope of delivery

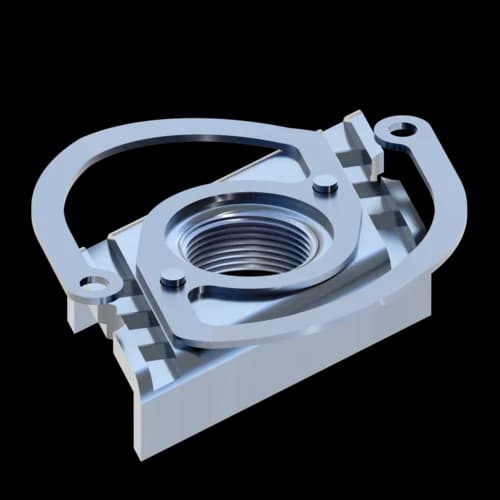

Channel Nut and Spring are tightely connected.

Installation

After inserting the Speed Nut into the channel opening, exert a slight axial pressure. This will cause the nut to turn to the right and engage into the channel. De-installation simply requires the nut to be turned to the left and pulled free. Installation and de-installation do not require tools and may be repeated several times.
Tighten the part to be connected - that's it!

Technical Data

Fz =
1.5 kN
Material:
Channel nut:
Steel, class 5.6, electro-galvanised
Spring washer:
Sheet metal spring steel, rustproof
TypeW
[kg]
Quantity
[pack]
Part
number
CC 27-M60.01100 195956
CC 27-M80.01100 195949
CC 27-M100.01100 117358
