Application

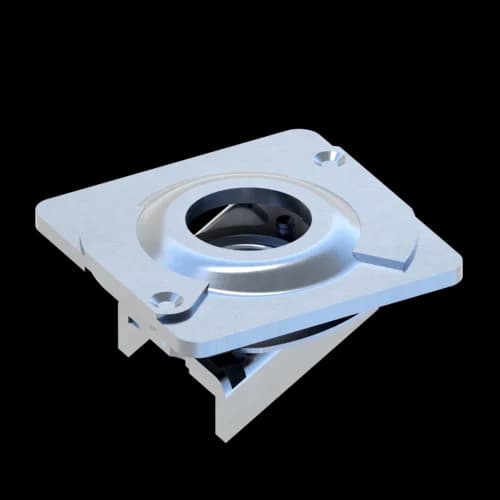

Quick-installation element for efficient mounting of pipe clamps and other components to Sikla Channels MS 27:

  • Time-saving due to pre-assembled Block instead of 2 individual parts.
  • Retains position in horizontal and vertical channels during locational adjustment. But can still be moved easily and freely along the channel as required.
  • To be combined with Pressix Rods PNS, threaded rods, screws or other products with a thread connection.

Scope of delivery

Block completely pre-assembled.

Installation

Insert the Block into the channel; by turning to the right, the channel nut locks into the channel, then tighten up to 10 Nm - That's it!

Note:
Thread connection M10 practicable by using Reducer f/m 10/8 (article no. 113689)

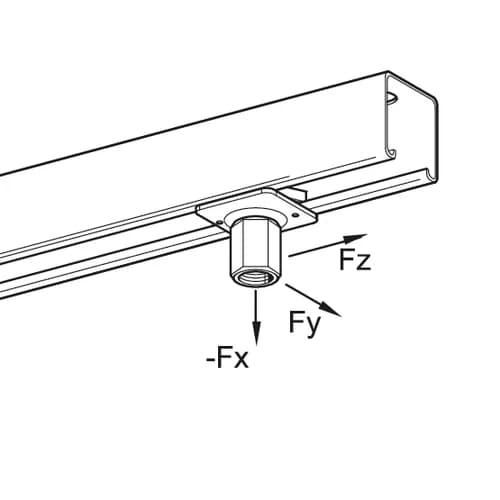

Technical Data

Fz =
1.5 kN
Fx =
0.8 kN

Material:
Steel, electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
M80.01100 195932
