Application

Connection element for suspended pipe supports.

Technical Data

Working load (tension):
15 kN
Load figure applies to closed and welded conditions.
Material:
Steel, black, open

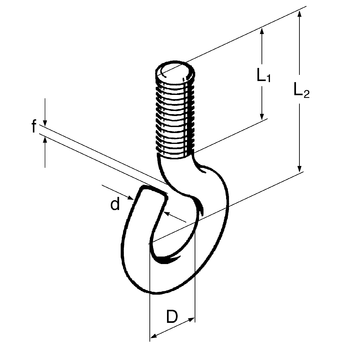

TypeD
[mm]
d
[mm]
L2
[mm]
L1
[mm]
f
[mm]
W
[kg]
Quantity
[pack]
Part
number
M12 x 4030107540100.1550 152981
M16 x 4030147940100.2425 152972
