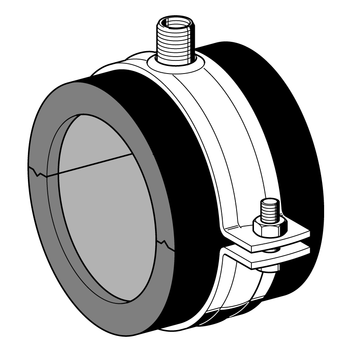

Chilled Water Clamp LKS 19

Application

Suitable for secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines. An optimal diffusion-tight connection with the pipe insulation is easily and safely achieved by fixing usual insulation materials to the clamp faces using adhesive. Recommended up to -0°C at normal ambient condition.

Scope of delivery

Consisting of pipe clamp and insulation insert. The one-piece insulation insert comprising two joined PUR elements forms a comprehensive connection between PUR element and pipe clamp all around the pipe.
The outer edges of the PUR elements are equipped with elastomer foam and coated by a black aluminium foil.

Type
Nominal thickness of
the insulation [mm]
Size
Length of PUR element
b [mm]
LKS 19
19
15 - 89
102 - 273
50
100

Technical Data

The unsupported lengths as listed in DIN 1988 may be applied for types LKS 13 and LKS M 19 to 168.

The regulations of DIN 4140 have to be respected (an existing gap has to be sealed with sealant). Sealant DP 30/45 see Chapter "Fixed Point Packages".

Clamp material:
Steel, electro-galvanised
Insulation insert:
Free of halogens
PUR core:
Specific gravity 80 or 120 kg/m3
Thermal conductivity:
λ = 0.024 - 0.026 W/(mK) at 0°C
λ = 0.038 W/(mK) at 10°C
λ = 0.040 W/(mK) at 40°C
Steam diffusion resistance factor:
µ ≥ 7000
Fire resistance:
B2 (DIN 4102)
Temperature range:
-40°C up to +105°C
Insulation insert:
Up to 18 dB(A)
Storage temperature:
≥ 10°C
Storage period:
1 year

* = Delivery time: 10 workdays

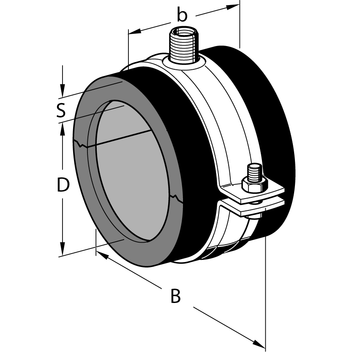

TypePipe ø
D [mm]
B
[mm]
Insulation
thickness
S [mm]
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
LKS 19-1515.091.519.0M8/M100.0842 114730
LKS 19-16 *16.091.519.0M8/M100.0942 114731
LKS 19-1818.099.019.5M8/M100.0942 114733
LKS 19-20 *20.099.019.5M8/M100.1042 114734
LKS 19-2222.0105.019.5M8/M100.1042 114735
LKS 19-2525.0105.019.5M8/M100.0942 114736
LKS 19-26 *26.0105.019.5M8/M100.0942 114737
LKS 19-2828.0112.020.0M8/M100.1036 114738
LKS 19-3030.0112.020.0M8/M100.1036 114739
LKS 19-32 *32.0112.020.0M8/M100.1136 114740
LKS 19-3535.0125.020.0M8/M100.1724 114741
LKS 19-3838.0125.021.5M8/M100.1724 114742
LKS 19-40 *40.0134.021.5M8/M100.1824 114743
LKS 19-4242.0134.021.5M8/M100.1824 114744
LKS 19-4444.5134.021.5M8/M100.2024 114745
LKS 19-4848.3141.021.5M8/M100.2018 114746
LKS 19-50 *50.0146.521.5M8/M100.2018 114747
LKS 19-5454.0146.521.5M8/M100.2018 114748
LKS 19-5757.0146.522.0M8/M100.2218 114749

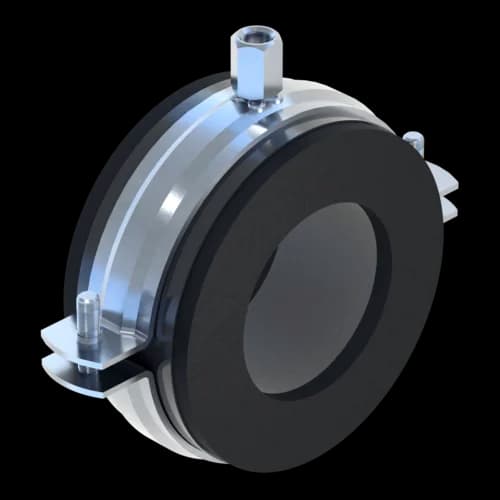

LKS 19-6060.3151.022.0M8/M100.2218 114751
LKS 19-6464.0151.022.0M8/M100.2218 114752
LKS 19-7070.0159.522.0M8/M100.2418 114753
LKS 19-7676.1173.022.0M8/M100.3018 114754
LKS 19-8080.0173.022.0M8/M100.3018 114755
LKS 19-8988.9186.022.0M8/M100.3010 114756
LKS 19-102101.6203.022.5M8/M100.3910 114757
LKS 19-108108.0203.022.5M8/M100.4010 114758
LKS 19-110110.0203.022.5M8/M100.4010 114759
LKS 19-114114.3215.022.5M8/M100.418 114760
LKS 19-125 *125.0229.023.0M8/M100.446 114761
LKS 19-133133.0229.023.0M8/M100.476 114762
LKS 19-139139.7265.023.0M12/M16/1/2"1.196 114763
LKS 19-160159.0276.023.0M12/M16/1/2"1.276 114764
LKS 19-168168.3287.023.0M12/M16/1/2"1.296 114765
LKS 19-180180.0307.025.0M12/M16/1/2"1.356 114766
LKS 19-200200.0321.025.0M12/M16/1/2"1.446 114767
LKS 19-219219.0344.023.0M12/M16/1/2"1.626 114768
LKS 19-225225.0355.025.0M12/M16/1/2"1.646 114769
LKS 19-250250.0374.025.0M12/M16/1/2"1.692 114770
LKS 19-273273.0440.023.0M162.772 114771
