INNOVATIVE PIPE
SUPPORT SOLUTIONS

Application

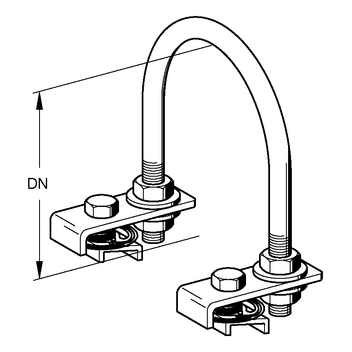

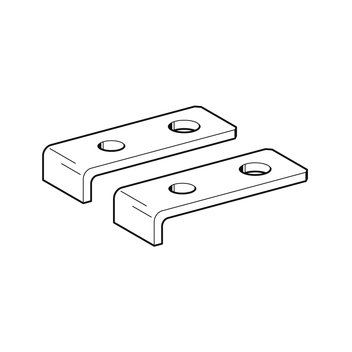

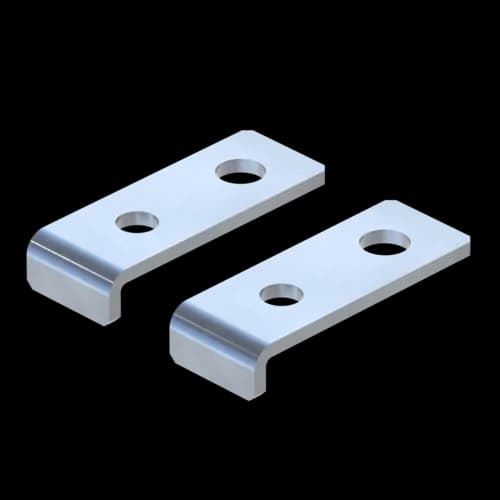

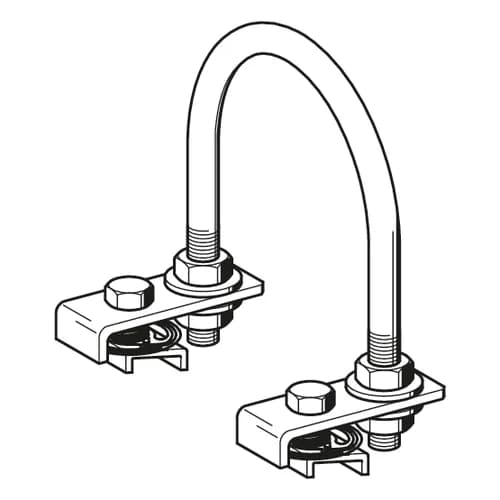

For simple combination of U Bolt and Channel.
Suitable for all Sikla Channels MS 41.

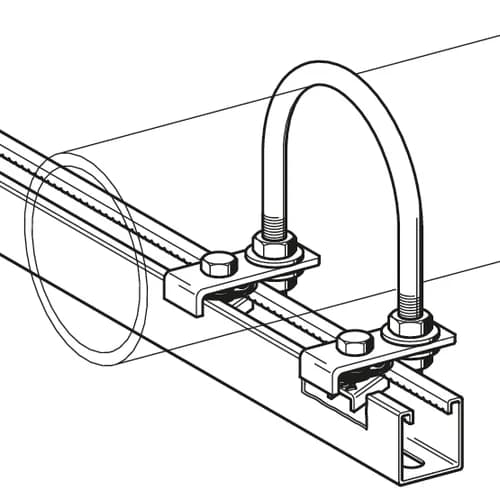

Installation

Simple attachment with Channel Nuts M10 and Hexagon Bolts M10x25.
For each U bolt each one set has to be used.

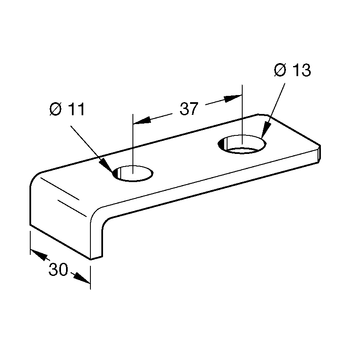

Technical Data

Material:
Steel, HCP
TypeW
[kg]
Pack.
[pair]
Part
number
UBF0.1525 194188
