Application

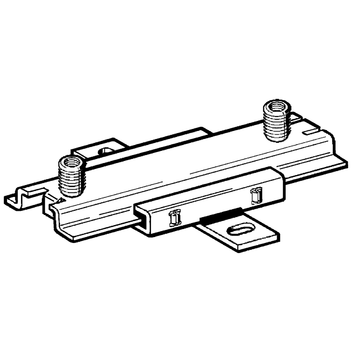

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers.
To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G.
Various connection options with these pipe clamps ranging between M10 and R1". For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails.

Technical Data

Permissible load for ceiling mounting:
0.6 kN
Permissible load for floor mounting:
1.2 kN
Lever arm Lmax:
300 mm
Max. Slide path:
140 mm
Temperature range (permanent exposure):
130°C

Static friction coefficient µ0:
0.18
Sliding friction coefficient µ:
0.14

Material:
Metal components:
Steel, HCP
Slide bar:
Polyamide, glass fibre reinforced

Adm. load FZ * under stress of fire

FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
≤ 600 ≤ 430 ≤ 280 ≤ 200

FZ = max. adm. load

* The load capacity of the connecting elements used is to be respected, this applies in particular under stress of fire.

TypeW
[kg]
Quantity
[pack]
Part
number
2G2-PL 0.6525 114594
