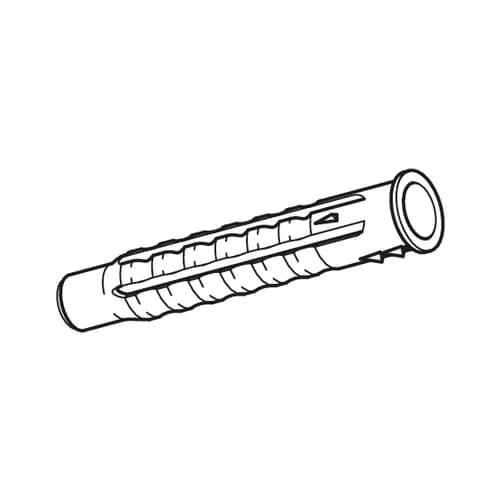

Universal Plug ANA

Application

The Universal Plug with collar is suitable for all concrete material and masonry, perforated and hollow bricks, boards. The torsion protection prevents rotation in the drill hole. The installation in cavities causes a knot and therefore an interlocking connection. The stiff plug neck prevents damage of tiles and plaster. The collar serves as stop an prevents the plug from slipping deeper into the drill hole.

Technical Data

Temperature range:
-40°C up to +70°C

Recommended loads (max) kN:

Type
concrete
B25
perforated
brick
light
concrete
plaster-
board
chip
board
61)
0,60 0,45 0,30 _ - _ -
62)
0,40 0,30 0,15 0,15 0,40
81)
1,10 0,90 0,50 - -
82)
0,80 0,60 0,30 0,18 0,45
101)
1,80 1,20 0,50 - -
102)
1,00 0,60 0,40 0,20 0,60
121)
3,00 1,80 1,20 _ - -
141)
4,00 2,20 1,30 _ - -

1) Wood screw with max. diameter
2) Chip board screw with max. diameter safety factor 5.0

Typeø
[mm]
Length
[mm]
Screw-ø
min/max
W
[kg]
Quantity
[pack]
Part
number
6 x 306303.5 - 5.00.01100 402430
8 x 408404.5 - 6.00.01100 402431
10 x 5010506.0 - 8.00.0150 402432
12 x 6012608.0 - 10.00.0125 402433
14 x 70147010.00.0120 402434
