Fixings and Fastenings

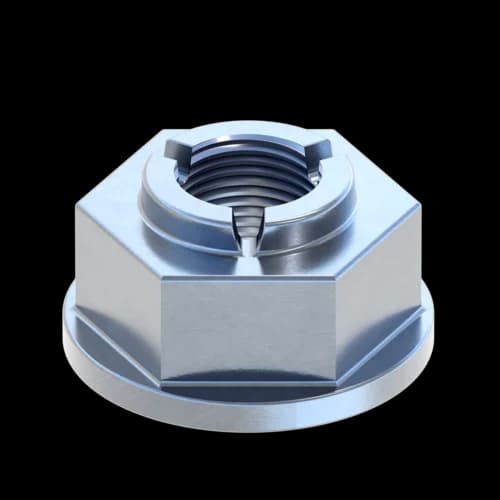

Safety Nut with flange NT SEC HCP

Application

The Safety Nut is equipped with a self-locking head made of steel (3 parts) being arranged in a conical shape. This offers the highest possible safety against unscrewing. The Safety Nut with flange offers the following advantages:

  • Clamping effect directly at the thread – resilient, elastic
  • applicable for all HCP and electrogalvanised screws and threaded rods
  • improved thread moving due to the separated securing segments
  • reusability after disassembling
  • high temperature resistance

Technical Data

Material:
Steel, Quality class 10, HCP
TypeD
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8170.0150 113062
M10210.0150 113063
