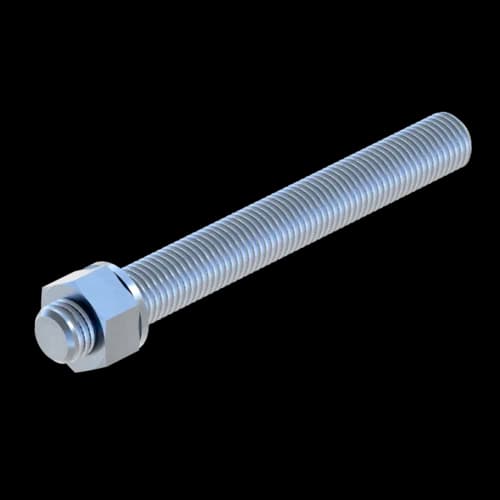

Resin Anchor Rod VMU-A

Application

Anchor Rod for put-before mounting to be used with Injection System VMU. For anchoring in concrete tensile pressure zones or in brickwork. Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations (stainless steel version available on request).

  • No special drill required
  • Heavy loads
  • Small edge and centre distance

Scope of delivery

Pre-assembled with washer and hexagon nut.

Installation

1.
Drill hole according to min. setting depth vertically to the surface
2.
Careful cleaning of drill hole with Steel brush and Blow-Out Pump
3.
Screw Mixing Nozzle onto the cartridge; foreshots to be removed and fill 2/3 of drill hole with resin starting from botton of the hole.
4.
Drive the anchor manually into plastered borehole up to its embedment mark
5.
When reaching the embedment mark, plaster must be apparent.
6.
Respect hardening time, when tighten the anchor with instructed torque

Technical Data

Detailed assembly instruction is attached to the product.

Material:
Steel, galvanised

Approvals / Compliance

Sikla Approval ETA-15/0270, ETA-17/307

Injection System VMU plus - ETA 15/0270 PDF | 5.6 MB Injection System VMU plus - ETA 17/0307 PDF | 10.7 MB

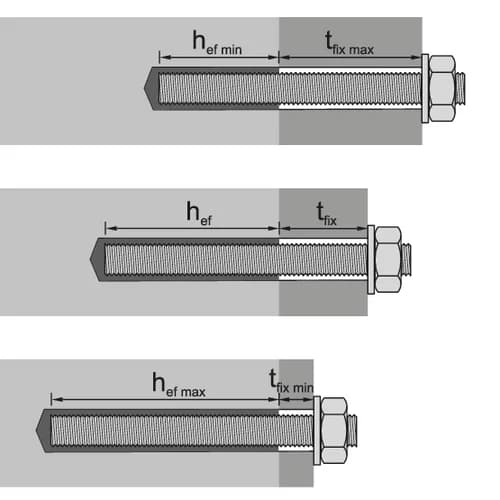

TypeTotal length
[mm]
tfix = Max.
usable length
[mm]
W
[kg]
Quantity
[pack]
Part
number
VMU-A 8-20/110110200.0510 110444
VMU-A 8-55/145145550.0610 110445
VMU-A 10-30/130130300.0910 110447
VMU-A 10-50/150150500.1010 110448
VMU-A 12-15/120120150.1410 110449
VMU-A 12-50/155155500.1410 110450
VMU-A 16-15/160160150.2710 110451
