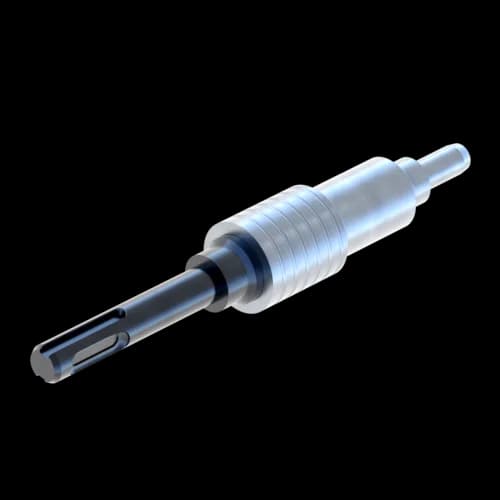

Plug-on Setting Tool ASW

Application

The use of the Plug-on Setting Tool facilitates the assembly of Drop-In Anchors significantly. The reduction of assembly time and of the assembly effort enables an economical installation of the anchors.

Scope of delivery

ASW: Expanding mandrel incl. collar drill
ANT BB: Collar drill

Technical Data

Type
Suitable for
Drop-in anchor
Suitable
Collar drill BB
ASW M8 x 25 AN ES M8 x 25 ANT BB 10 x 25
ASW M8 x 30 AN ES M8 x 30 ANT BB 10 x 30
ASW M8 x 40 AN ES M8 x 40 ANT BB 10 x 40
ASW M10 x 25 AN ES M10 x 25 ANT BB 12 x 25
ASW M10 x 30 AN ES M10 x 30 ANT BB 12 x 30
ASW M10 x 40 AN ES M10 x 40 ANT BB 12 x 40

Material:
Expanding mandrel:
Steel, galvanised
Collar drill:
Steel, hardened
TypeW
[kg]
Quantity
[pack]
Part
number
ASW M8 x 250.201 116636
ASW M8 x 300.201 116637
ASW M8 x 400.231 116638
ASW M10 x 250.211 116639
ASW M10 x 300.211 116640
ASW M10 x 400.241 116641

ANT BB 10 x 250.111 116666
ANT BB 10 x 300.111 116667
ANT BB 10 x 400.121 116668
ANT BB 12 x 250.121 116669
ANT BB 12 x 300.121 116670
ANT BB 12 x 400.121 116671
