Structural Elements 120

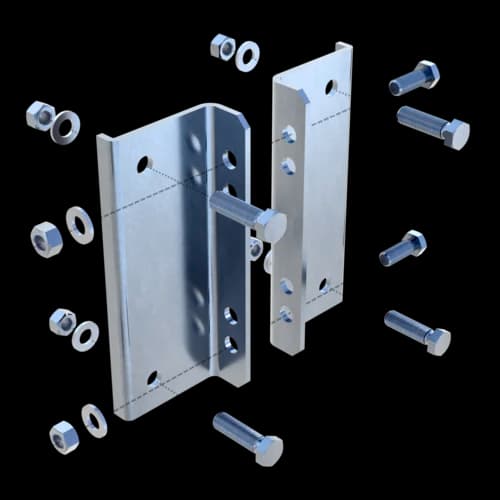

Bracket Plates FV 100/120

Application

For safe interlocking connection of a Beam Bracket or an End Support STA to other Beam Brackets TKO (adjustment as per grid with 25 or 50 mm).

Scope of delivery

Two identical plates.
Accessories:
2 Hexagon Bolts M12 x 35
4 Hexagon Bolts M12 x 45
6 Hexagon Nuts M12
6 Washers

Installation

Mount Bracket Plates to Beam Bracket TKO by using 2 Hexagon Bolts
M12 x 35. Then attach requested Beam Bracket TKO or End Support STA by using 4 Hexagon Bolts M12 x 45.

Technical Data

Material:
Bracket Plates:
Steel, HCP
Bolts:
Steel, class 8.8, HCP
Nuts:
Steel, class 8, HCP
Washers:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
FV 100/1202.51 187616
