Structural Elements 100

End Support STA 100

Application

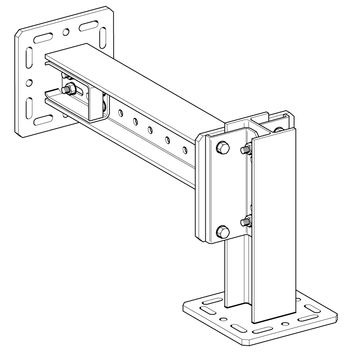

In connection with Beam Bracket TKO 100, the End Support STA 100 enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of the slotted holes a simple compensation of structural deviations is possible up to 50 mm.

Scope of delivery

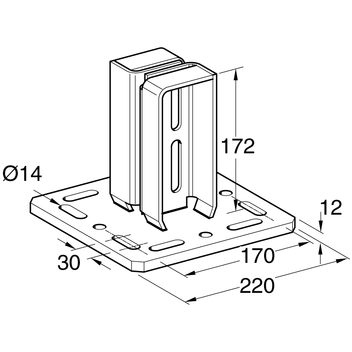

Base plate welded to beam holder
Accessories:
4 Hexagon Bolts M12 x 35
4 Hexagon Nuts M12
8 Washers

Technical Data



Material:
STA 100:
Steel, hot-dipped galvanised
Bolts:
Steel, class 8.8, hot-dipped galvanised
Nuts:
Steel, class 8.8, hot-dipped galvanised
Washers:
Steel, hot-dipped galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
STA 1006.41 183971
