Rod Hangers

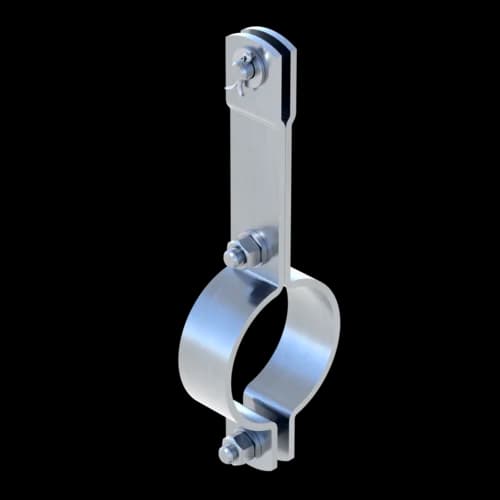

Stabil Form C LK

Application

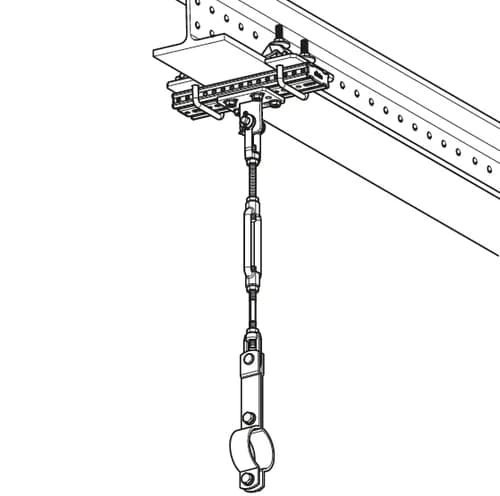

Industrial pipe clamp following VGB-R 510 L for standard industrial pipe supports. The pipe clamp Stabil Form C LK can be used as pendulum suspension or as part of a rod hanger.

Scope of delivery

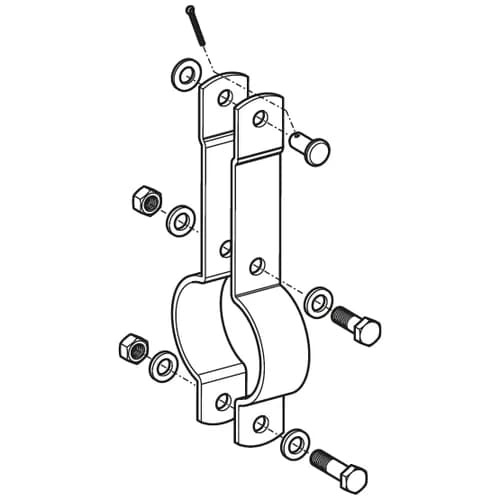

With screws and nuts (class 8.8 or 8) and bolts incl. splint. The pipe clamp is delivered pre-assembled.

Technical Data

Type
perm. load
[kN]
recommended Rod
Hanger Arrangement LKV
22 - 89 4.0 LKV M10 / LKV M12
115 - 169 5.4 LKV M16
220 - 324 9.3 LKV M16

The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

Type
D
[mm]
a1
[mm]
a2
[mm]
L
[mm]
L1
[mm]
L2
[mm]
L3
[mm]
B x S
[mm]
22 22 7 10 90 29 12 33 30 x 5
27 27 7 10 93 29 12 34 30 x 5
34 34 7 10 107 29 12 35 30 x 5
44 44 7 10 113 29 12 36 30 x 5
49 49 7 10 126 29 12 36 30 x 5
61 61 7 10 144 28 18 40 40 x 5
77 77 7 10 183 28 18 41 40 x 5
89 89 7 10 189 28 18 41 40 x 5
115 115 11 16 221 38 23 41 50 x 6
140 140 11 16 234 38 23 41 50 x 6
169 169 11 16 249 38 23 41 50 x 6
220 220 11 16 280 38 23 47 50 x 8
273 273 11 16 311 38 23 56 60 x 8
324 324 11 16 336 38 23 56 60 x 8

Material:
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
220.4525 113103
270.4825 113104
340.5425 113105
440.5725 113106
490.5825 113107
610.9810 113108
771.1710 113109
891.2410 113110
1151.8310 113111
1401.9810 113112
1692.161 113113
2203.741 113114
2735.241 113115
3245.841 113116
