Rod Hangers

Rod Coupling AD IG/IG HCP

Application

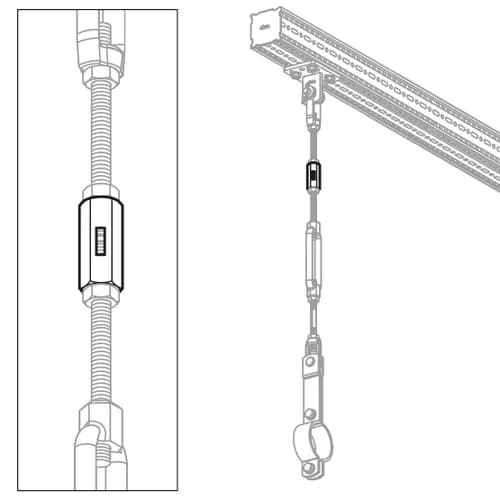

Connection element to extend threaded rods for suspension heights of Sikla Load Chains of more than 3 meters effective length of thread. With slot for visual check of screw depth of both ends of the threaded rods. The HCP-surface of the Rod Coupling in combination with other HCP-components guarantees a consistent corrosion protection for all individual parts.
During assembly the Rod Coupling has to be locked with two hexagon nuts (not included in scope of delivery).

Technical Data

Type
max. perm. tensile load
[kN]
M10 18.6
M12 27.0
M16 39.2

Material:
Steel, HCP
TypeLength
[mm]
A/FW
[kg]
Quantity
[pack]
Part
number
M10 x 303017 mm0.04100 116700
M12 x 353517 mm0.0450 116701
M16 x 404022 mm0.0750 116702
