High Corrosion Protected Products

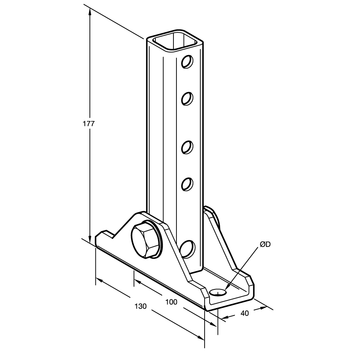

Joint JOI 41 T HCP
To be used for connecting Channels MS 41 to optionally bended structures such as tunnels, bended roof frames etc. under different angles. Especially suitable as brace support. Arrangement of the channel opening to all directions is possible.
Scope of delivery
Pre-assembled with captive screw and nut.

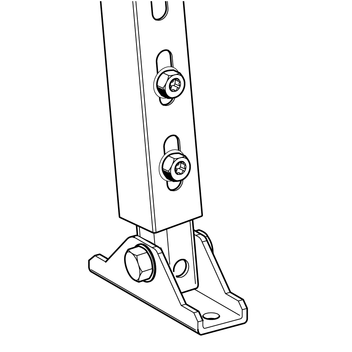

Fixation to walls, ceiling and floors by means of dowels. Adjustment of angle during assembly. Easy, fast and secure assembly of the channel with two Self Forming Screws FLS F.
| Max. adm. load (vertical assembly to ceiling):|| 4.4 kN|
| Material:||Steel, HCP|
