Ducting Supports

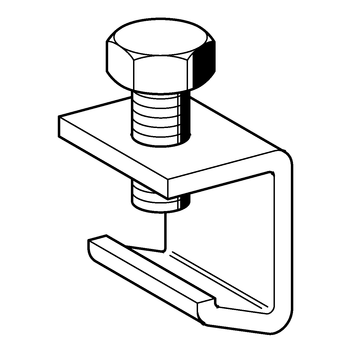

Ducting Bracket LCO

Application

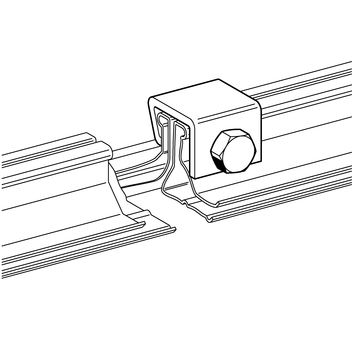

For connecting formed duct parts. When tightening the Bracket, the flanges of the duct parts are pressed against each other.

Scope of delivery

Pre-assembled with M8 x 20 hexagon bolt.

Installation

The distance between two Ducting Brackets should not exceed 200 mm. Tighten the bolt with a torque of approx. 7 Nm.

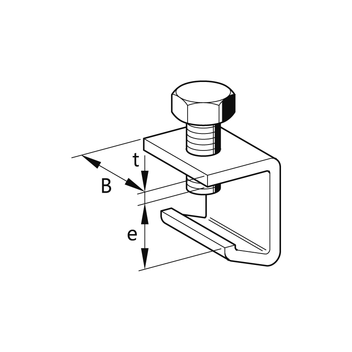

Technical Data

Material:
Steel (27 x 3 mm), electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
Ducting Bracket 200.05200 170222
