Roof Fixings

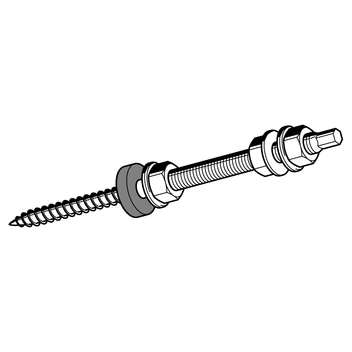

Bolt Screw Set STS

Application

For attachment of Channels and Flex Frames to profiled insulated roof sheets, trapezoidal decking or sandwich panels with a timber batten sub-structure.

Scope of delivery

Bolt Screw incl. Sealing, Nuts and Spacers.

Installation

1.
Drill a ø 6.5 mm hole through the highest point of the roofing into the timber battens below. Use Channel as a drilling template
2.
Drill out a ø13mm counter-bore hole through the roof material to the face of the batten.
3.
Install the Bolt Screw such that the woodscrew thread is fully engaged to the timber in order to provide the maximum load capacity. The sealing disk should be compressed against the batten. Insert Channel or Bolt Screw Plate STP and tighten the self-locking flange nut (wrench size 15).

Technical Data

Max. perm. loads:
up to Fz = 1,8 kN
Fq according to roof pitch and screw option
Material:
Bolt Screw, Nut and Spacer:
Stainless steel 304
Sealing:
EPDM
TypeW
[kg]
Quantity
[pack]
Part
number
M10 x 1000.10100 111450
M10 x 1500.11100 111451
M10 x 2000.1450 111452
