Roof Fixings

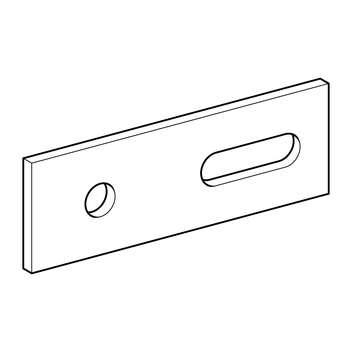

Bolt Screw Plate STP

Application

Unit to compensate construction tolerances and to fix channel systems in combination with Bolt Screw Set STS.

Installation

The installation of Channels 41 will preferably be done by Flange Screw SCR FLA HCP M10 x 25 and Hexagon Nut NT hdg M10.

Technical Data

Material:
Steel, HCP
TypePlate
dimensions [mm]
Dimensions of
elongated hole
[mm]
W
[kg]
Quantity
[pack]
Part
number
STP120 x 3040 x 110.1430 111467
