Roof Fixings

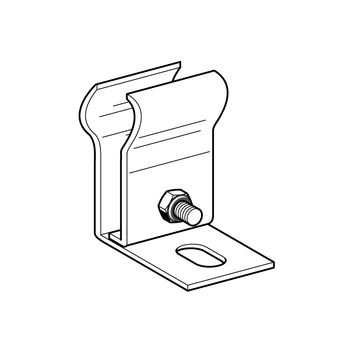

Aluminium Profiled Sheet Ridge Clamp BFK-R

Application

Clamp for aluminum-profiled roof sheet to fix Channel 41.

Note: Load information must consider the data based on the manufacturer’s calculation table.

Scope of delivery

Clamp incl. connection elements.

Installation

1.
Position the clamp on the ridge of the aluminum-profile and screw tight.
2.
Apply the channel and fix it with Flange Screw SCR FLA M10x25, Washer 10/40 and M10 Nut HCP.

Technical Data

max. perm. load:
Fz = 1.2 kN
Material:
Stainless Steel 304 (A2)
TypeW
[kg]
Quantity
[pack]
Part
number
BFK-R0.1425 194058
