Speed Nut NT CC 41 HCP

Application

In particular useful for installation in vertical channels or places of difficult access.
Further advantages:

  • For all Sikla Channels MS 41, independent of the channel's height.
  • No getting stuck on bolt heads when sliding in the channel.
  • No appearance of settlement after tightening.

Scope of delivery

Channel Nut and Spring are tightely connected.

Installation

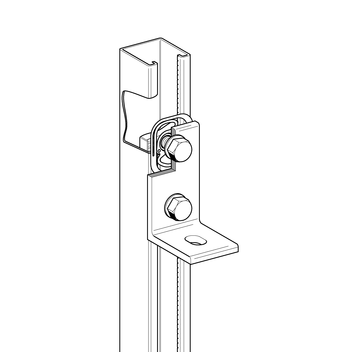

After inserting the Speed Nut into the channel opening, it is turned to the right as far as it will go by exerting slight pressure on it; deinstallation may be effected by following the instructions on the reverse order.
Installation and deinstallation do not require tools and may be repeated several times.

Technical Data

M6
M8
M10
M12
Tightening torque 8.8 1) [Nm] 10 25 40 80

1)
Using lower steel classes, the value are to be reduced accordingly.

Channel
thickness
[mm]
M6
FZ ≤
[kN]
M8
FZ ≤
[kN]
M10
FZ ≤
[kN]
M12
FZ ≤
[kN]

M6
FQ ≤
[kN]
M8
FQ ≤
[kN]
M10
FQ ≤
[kN]
M12
FQ ≤
[kN]
1.5 3.0 3.0 3.0 7.5   0.7 1.8 2.9 7.5
2.0 3.2 5.8 5.8 10   0.9 2.1 3.4 9
2.5 3.2 5.8 5.8 11   1.0 2.6 4.1 9
3.0 3.2 5.8 5.8 13   1.1 2.8 4.4 9

Note: The permissible load capacities of the channels are to be respected.

Material:
CC-Channel Nut:
Steel class, HCP
Spring washer:
Sheet metal spring steel, rustproof
TypeW
[kg]
Quantity
[pack]
Part
number
CC 41-M60.0350 198698
CC 41-M80.0350 198650
CC 41-M100.0350 186284
CC-41 M120.0650 110015
