Application

Suitable for easy and professional assembly of support constructions for solar panels. Creation of a cross bracing with Channels MS Alu 27/42 only is possible by using Cross Connector CRO ALU. Simple handling due to the used aluminium material.

Installation

Using the Sikla CC Connecting Parts allows for easy and fast assembly of solar panels.

Technical Data

Material:
Aluminium

Type
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of inertia
[cm]
27/42
Wy : 1.89
Wz : 1.97
ly : 4.28
lz : 3.47
iy : 1.25
iz : 1.13
41/31/2,0
Wy : 1.60
Wz : 2.88
ly : 2.77
lz : 5.90
iy : 1.13
iz : 1.65

Type
Cross section
A [cm2 ]

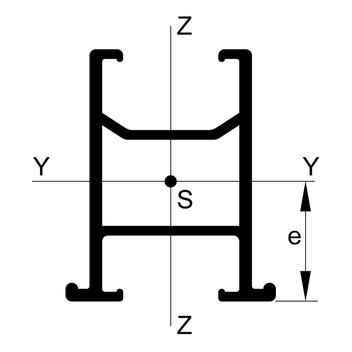

Distance
e [cm]

Max. point
carrying capacity
Fmax (tension) [kN]
Max. torsional
moment
Mq [Nm]
27/42 2.74 2.26 1.5 10
41/31/2.0 2.17 1.73 1.5 10

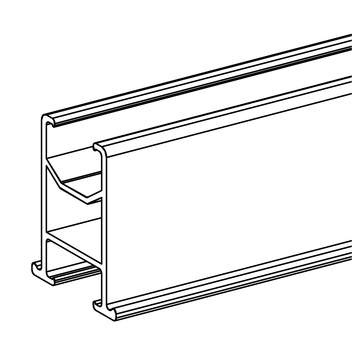

Load chart:

Channel MS ALU

TypeLength
[m]
Weight
[kg/m]
Qty.
[m]
Part
number
41/31/2.06.000.556 112637
