End Support STA F100 HCP
3 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
End Support STA-E F 80 45° HCP
1 Variant
The End Support STA F80-E 45° is designed to generate a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets.
End Support STA-E F 80-E HCP
2 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80 or a Cantilever bracket AK F80. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible.
End Support STA-E F100 -F 80 45° HCP
1 Variant
The End Support STA F 100-80-E 45° is designed to generate a 45° bracing element in combination with F100 Beam Sections or F100 Cantilever Brackets.
End Support STA-E F100 HCP
4 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
End Support STA-Q F 80 HCP
1 Variant
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised e.g. for cable trays and downpipes.
End Support STA-Q F100 HCP
1 Variant
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100/160.
End Support WBD F 80 HCP
5 Variants
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
End Support WBD F100 HCP
8 Variants
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Eye-Plate HP F 80 HCP
6 Variants
Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Eye-Plate HP F100 HCP
6 Variants
Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Fixed Point Bracket XW F 80 HCP
1 Variant
Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 80 beam sections.
Fixed Point Bracket XW F100 HCP
1 Variant
Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 100 beam sections.
Flange Screw SCR FLA TT HCP
2 Variants
The Flange Screws are self-forming screws. Type TT M10 x 60 is only suitable for connecting mounting rails <= 41 mm high with siFramo profiles.
Guiding Bracket FW F 80 - L HCP
1 Variant
Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F80 beam sections. Type L can guide the Pipe Shoe in the axial direction, but does not have any lift-off protection.
Guiding Bracket FW F 80 - Z HCP
4 Variants
Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F80 beam sections. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.
Guiding Bracket FW F 80 HCP
1 Variant
Element for modification of siMotec Sliding Pipe Shoes to Guided Pipe Shoes on siFramo F80 beam sections.
Guiding Bracket FW F100 - L HCP
1 Variant
Using the Guiding Bracket FW, it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F100 beam sections. Type L can guide the Pipe Shoe in the axial direction, but does not have any lift-off protection.
Guiding Bracket FW F100 - Z HCP
4 Variants
Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F100 beam sections. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.
Guiding Bracket FW F100 HCP
1 Variant
Element for modification of siMotec Sliding Pipe Shoes to Guided Pipe Shoes on siFramo F100 beam sections.
Insulated Foot Plate SHB F 80 HCP
1 Variant
Integrated footplate and permeable rubber compound mat to provide a solution for the support of building services, without the need for penetrative supports. In combination with the Sikla siFramo TP F 80 section, any frame structure may be built up from the footplates. Especially suitable for maintaining the thermal and waterproofing integrity of a roof or basement floor as no penetrative fixings are required to secure the footplates for service supports.

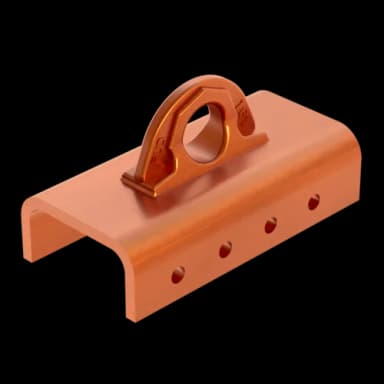

Lifting Lug KLA F 80
1 Variant
Element for lifting siFramo skids with TP F 80 beam sections using a lifting tool (e.g. crane). Indestructible construction for repeated lifting operations in multiple projects.

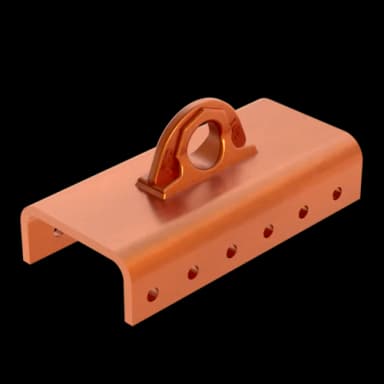

Lifting Lug KLA F100
1 Variant
Element for lifting siFramo skids with TP F100 beam sections using a lifting tool (e.g. crane). Indestructible construction for repeated lifting operations in multiple projects.
Mounting Plate GPL F 80 HCP
4 Variants
Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F80 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.
