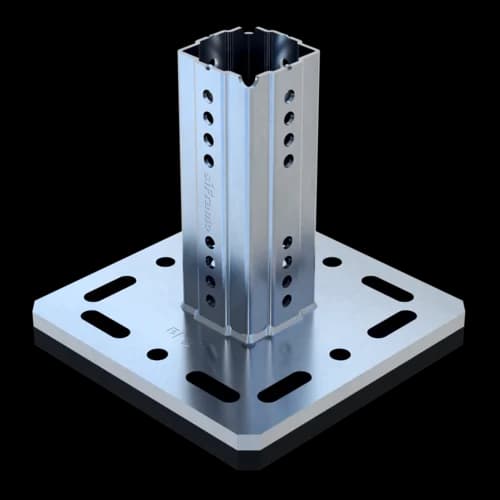

Insulated Foot Plate SHB F 80 HCP
Group: A440
Integrated footplate provide a solution for the support of building services
Permeable rubber compound mat to provides secure support and even load distribution
Overview of Types
General Information

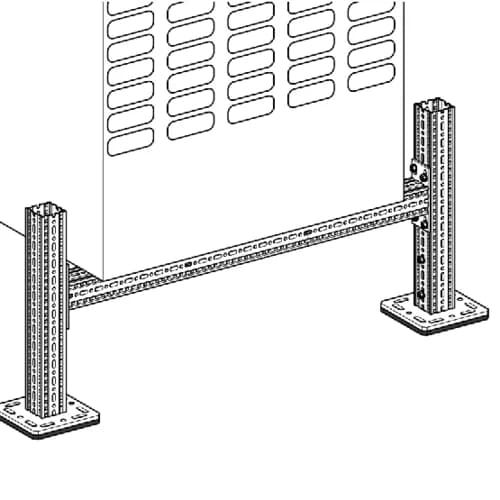

Integrated footplate and permeable rubber compound mat to provide a solution for the support of building services, without the need for penetrative supports. In combination with the Sikla siFramo TP F 80 section, any frame structure may be built up from the footplates. Especially suitable for maintaining the thermal and waterproofing integrity of a roof or basement floor as no penetrative fixings are required to secure the footplates for service supports.
Certification
Technical specifications
Fire Performance | B2 according to DIN 4102 |
Tensile Resistance | 0,40 N/mm² |
Tear Resistance | 3,40 N/mm |
Elongation at break | 70 % |
Compression set | approx. 4.0 % measured 30 min. after release at 50 % compression / 23°C after 72 hours |
Material base body | steel |
Material insulation body | SBR |
Surface | HCP |
Corossion class | C4 |
Load range
Type | VZ,perm. |
SHB F 80 220 HCP | 34,60 kN |
Software
This product is available in the following software.
Installation

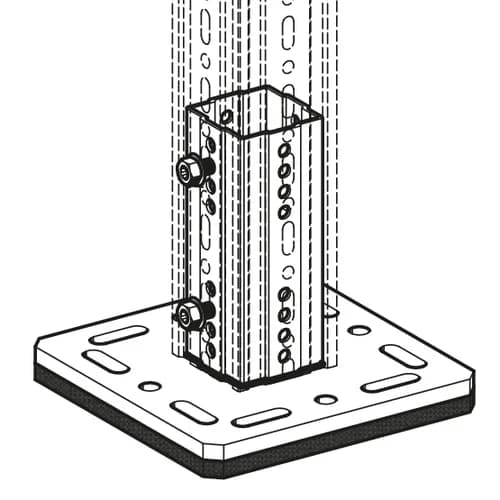

Assembly to Beam Section TP F 80 by means of 4 Self Forming Screws FLS F.
The system-related static friction must be determined on site. Depending on the roofing membrane used, the use of an additional separating layer is recommended. The load transfer into the structure must be checked on site.
