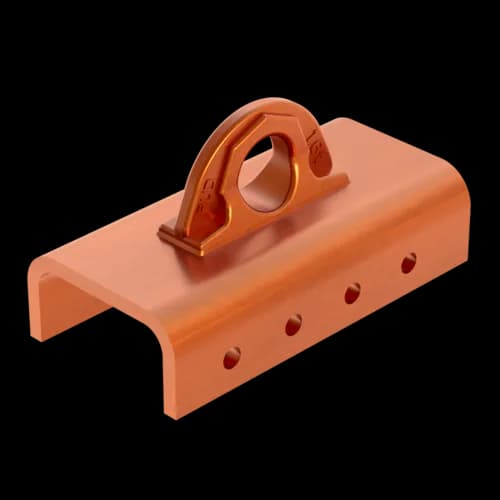

Lifting Lug KLA F 80
Group: A430
Element for lifting siFramo skids with TP F 80 beam sections using a lifting tool such as a crane.
Overview of Types
General Information
Element for lifting siFramo skids with TP F 80 beam sections using a lifting tool (e.g. crane). Indestructible construction for repeated lifting operations in multiple projects.
Certification
Technical specifications
Material base body | steel |
Corossion class | C2 |
Load range

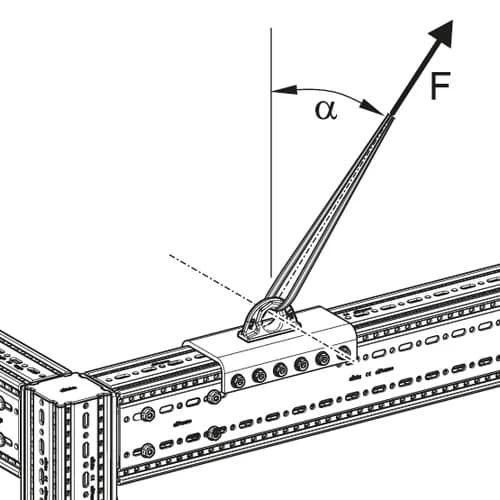

Type | Vmax α = 0° | Vmax α = 0° - 45° | Vmax α = 45° - 60° |
KLA F 80 | 16,00 kN | 11,00 kN | 8,00 kN |
Software
This product is available in the following software.
Installation
The Lifting Lug KLA F is connected to Beam Sections TP F:
TP F 80: 8 x SCR FLA TT M10 x 30 HCP (item code 116479)
(Lifting Lug supplied with the correspondent screws.)
Tightening torque SCR FLA TT: 20 Nm
