STA F 80-E 45
End Support STA-E F 80 45° HCP
Group: A422

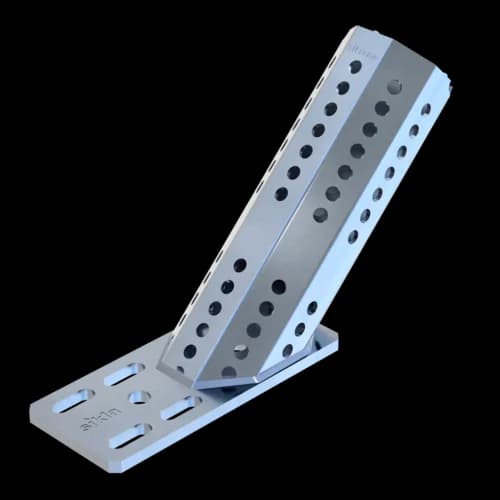

End Support STA F80-E 45° designed to create a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets
Overview of Types
General Information
The End Support STA F80-E 45° is designed to generate a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Technical specifications
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Also available with DualShield for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation

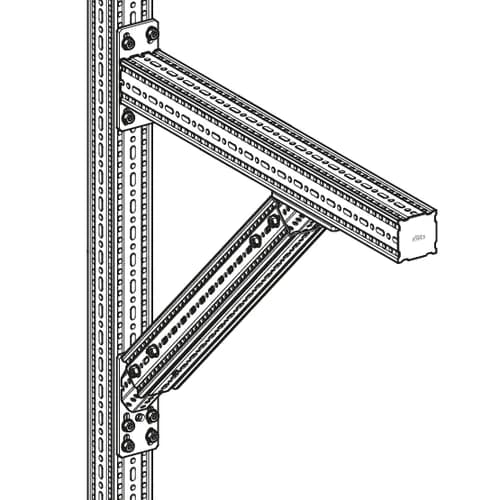

Depending on the situation on site there are two options to use this product:
a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.
b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.
Configuration: Base plate welded to Octagon F 80
