STA F 80-E 45
End Support STA-E F 80 45° HCP
Group: A422
Part number 406001

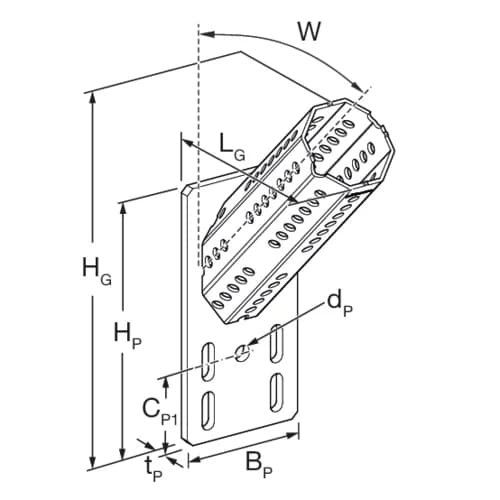

End Support STA F80-E 45° designed to create a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets
Technical Data
BP | 80 mm |
CP1 | 65 mm |
dP | 14 mm |
HG | 307.5 mm |
HP | 190 mm |
LG | 181 mm |
tP | 8 mm |
W | 45° |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Depending on the situation on site there are two options to use this product:
a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.
b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.
Configuration: Base plate welded to Octagon F 80
Documents
- siFramo - ETA-24/0471
PDF (2.15MB)
