F 80 - ST 1/2"
F 80 - 1/2"
F 80 - M10

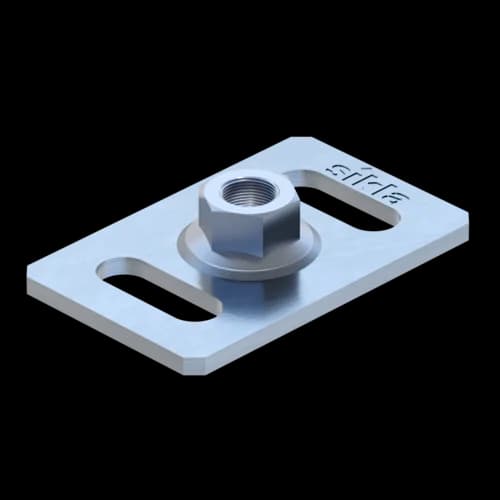

F 80 - M12

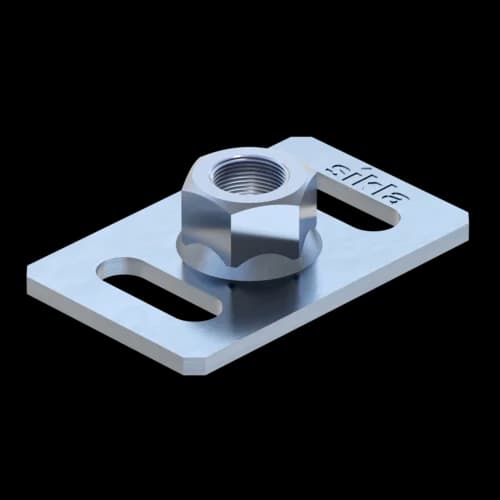

F 80 - M16
Mounting Plate GPL F 80 HCP
Group: A438
Interface component for connecting threaded bar M10 to M16 and threaded tube 1/2' to siFramo TP F80 beam sections
ST versions are solid and intended only for pipe clamp fastening using threaded pipes
Overview of Types
General Information
Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F80 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. |
GPL F 80 M10 HCP | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 8,00 kN |
GPL F 80 M12 HCP | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 8,00 kN |
GPL F 80 M16 HCP | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 8,00 kN |
GPL F 80 1/2'' HCP | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 8,00 kN |
The threaded pipe used is decisive for the permissible bending moment. Other influences from the fastening (anchor) must be taken into account.
Software
This product is available in the following software.
Installation
Type Normal: Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.
Type ST: Requires 4 x Self Forming Screw FLS per Mounting Plate GPL. Connection to the channel system with CC 41 threaded plate and hexagon screws. The base plate is also suitable for concrete connections thanks to the two holes.
