Roof Fixings

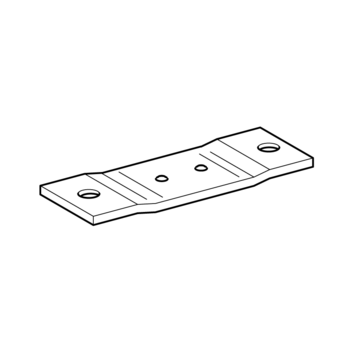

Adapter Plate AP-S

Application

Enables connection between Channel 41 and Roof Hook in case a direct connection is not possible due to lack of tolerance adjustment < 9 mm.

Installation

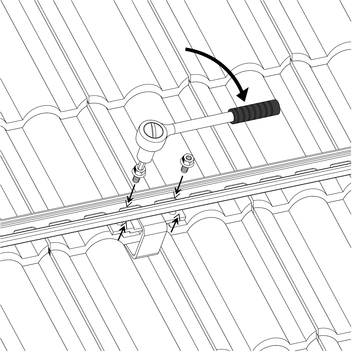

Place Adapter Plate under the Roof Hook and fix the Channel from the top with two Self-Forming Screws. The geometric design of the Adapter Plate creates a form-locked connection with the Roof Hook.

Technical Data

Material:
Steel, HCP or HDG
TypeW
[kg]
Quantity
[pack]
Part
number
AP-S0.141 194119
