Product catalogue

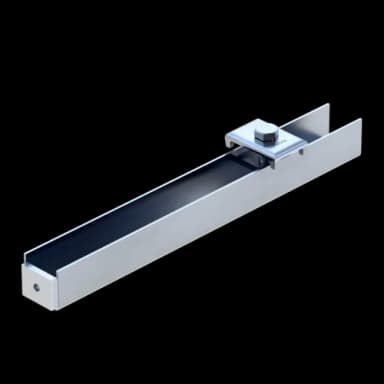

Highly variable extension piece for channels and channel constructions. Continuously variable from 0 up to 200 mm, simple adjustment, especially for elevated constructions. Ideal for the laying of individual or several pipelines with obligatory declines and for compensation of large tolerances of the building apart from the plans. In combination with Sikla Cantilever Brackets 41/41 continuously variable supports up to 1.2 m height are possible. Suitable for all Sikla Channels MS 41 (height >= 41 mm).

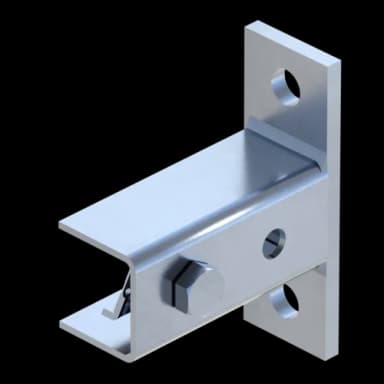

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

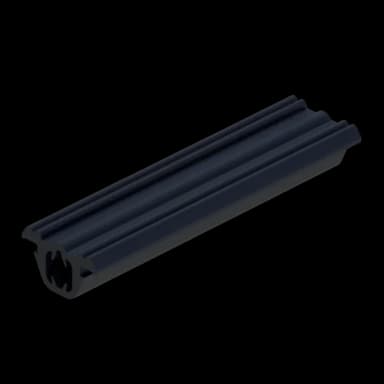

Sound absorption lining for inserting into Sikla Channels MS 27 or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

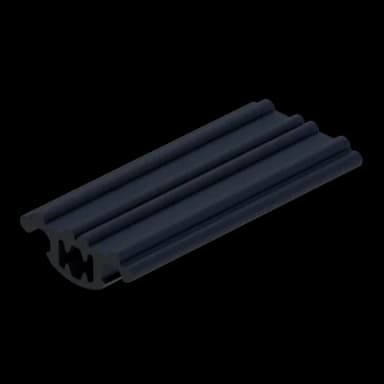

Sound Absorption Lining for inserting into Sikla Channels or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops. All products within the Pressix CC 27 range are compatible with Channel MS 27.

For the simple and professional manufacture of crossbars, wall brackets and support frames on the construction site or for pre-assembly.

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

For simple and professional production of crossbars, wall brackets and support frames on the construction site or for pre-assembly. The stainless steel Channel 41 rails are suitable as guide and support rails for the 41 VA sliding piece. In addition, all CC components in stainless steel can be used with this channel.

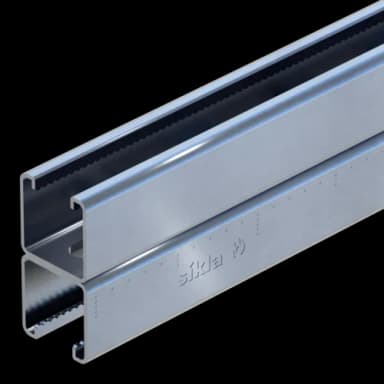

The Channel MS 41 D is a versatile element for technical building equipment and industrial plant construction. It is ideal for simple and professional manufacturing of crossbars, wall brackets and support frames. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, offer maximum flexibility during installation. The MS 41 D is available in various designs, for example as a trapezoidal channel for higher loads.

The Channel MS 41 D A4 is ideal for creating crossbars when medium loads are involved. Its double rail design allows components to be attached on both sides. The stainless steel Channel 41 rails are suitable as guide and support rails for the 41 VA sliding block. In addition, all CC components in stainless steel can be used with this Channel.

The Channel MS 41 D is a versatile element for technical building equipment and industrial plant construction. It is ideal for simple and professional manufacturing of crossbars, wall brackets and support frames. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, offer maximum flexibility during installation. The MS 41 D is available in various designs, for example as a trapezoidal channel for higher loads.

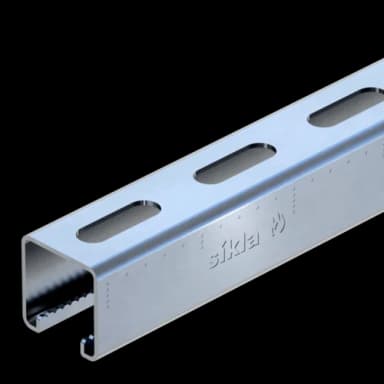

The Channel MS 41 is a versatile fastening element for technical building equipment and industrial plant construction. It is ideal for the simple and professional manufacturing of crossbars, wall brackets and support frames – both directly on the construction site and for pre-assembly. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, it offers maximum flexibility during installation. The MS 41 is available in various designs, for example as a trapezoidal rail for higher loads.

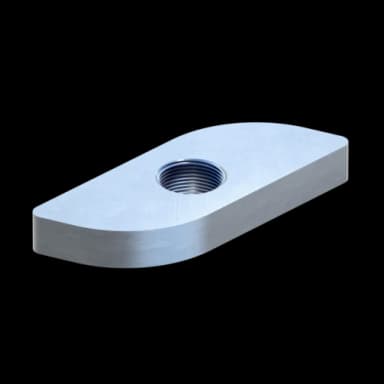

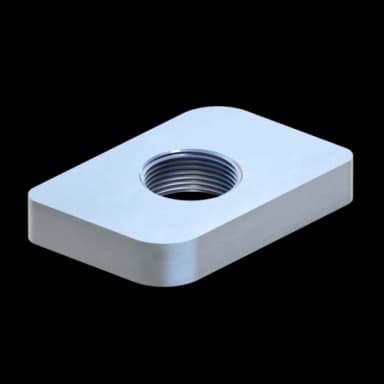

Channel Nuts type 27 are suitable for channels of 27 mm width.

Channel Nuts type 27 are suitable for channels of 27 mm width.

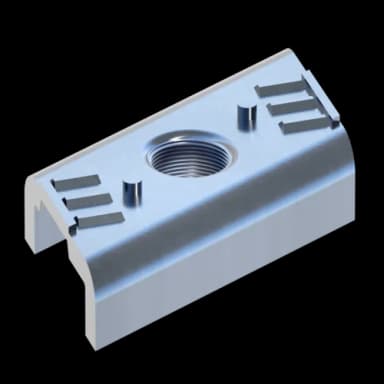

Channel Nuts NT 41 are suitable for Channels MS 41.

Channel Nut HZ 41 suitable for Channels MS 41.

Channel Nut HZ 41 A4 suitable for Channels MS 41 ss.

Channel Nut HZ 41 HCP suitable for Channels MS 41 HCP.

Mounting element to be fixed within the flanges of I- and U-shaped beams. The systems (such as pipes, etc.) supported this way may run parallel or at right angles to the direction of the I or U beam. Also suitable as support for crossbars between two vertically adverse arranged profiles.

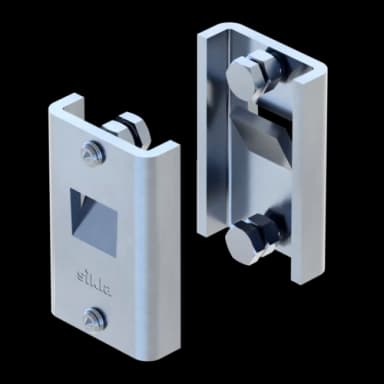

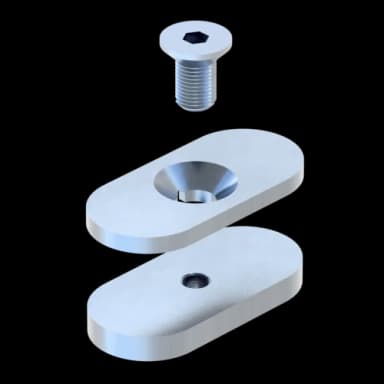

Used for assembling double channels made from Sikla Channels with slot pattern III or IV, i.e. with a minimum material thickness of 2.0 mm. This system could be used for pre-assembly in a workshop also. A torque wrench is required in order to ensure that the static values indicated on page 3-7 are achieved. Attention: These values are only guaranteed when using Sikla Channels.

Connecting element for frame structures with channels of the 41 series. Depending on the application the direction of the channel opening can be freely choosen.

Connecting element for frame structures with channels of the 41 series. Depending on the application the direction of the channel opening can be freely choosen.
