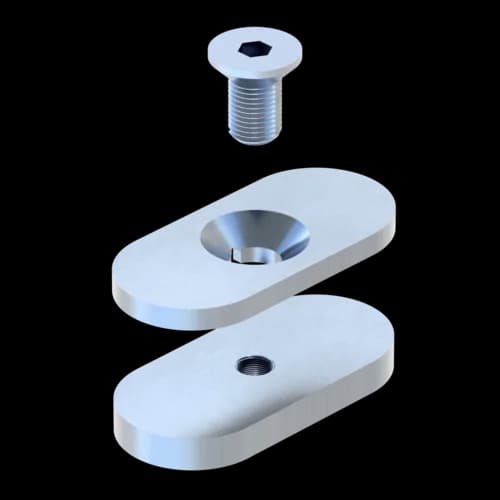

Clamping Unit KL
Group: 1357

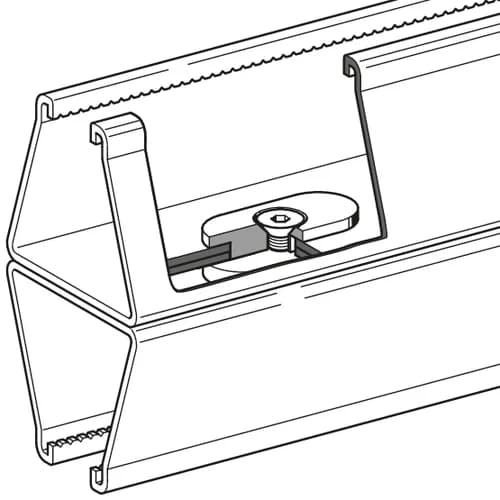

Used for assembling double channels made from Sikla Channels with slot pattern III or IV (minimum material thickness 2.0 mm)
Suitable for pre-assembly in a workshop; torque wrench required to achieve specified static values
Static values guaranteed only when using Sikla Channels
Overview of Types
General Information
Used for assembling double channels made from Sikla Channels with slot pattern III or IV, i.e. with a minimum material thickness of 2.0 mm. This system could be used for pre-assembly in a workshop also. A torque wrench is required in order to ensure that the static values indicated on page 3-7 are achieved. Attention: These values are only guaranteed when using Sikla Channels.
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Attention: These values are only guaranteed when using Sikla Channels.
Software
This product is available in the following software.
Installation
Max. spacing between connecting points is 500 mm, with one point at each end of the channel section.
Required number of Clamping Units: channel 2m = 5 pcs., channel 6m = 13 pcs.
For Channel 41/21/2,0 no connecting elements, like channels nuts, etc. could be placed directly above the connectors.
Torque: M = 25 Nm
Suitable for Sikla Channels: 41/21/2.0 to 41-75/75/3.0
