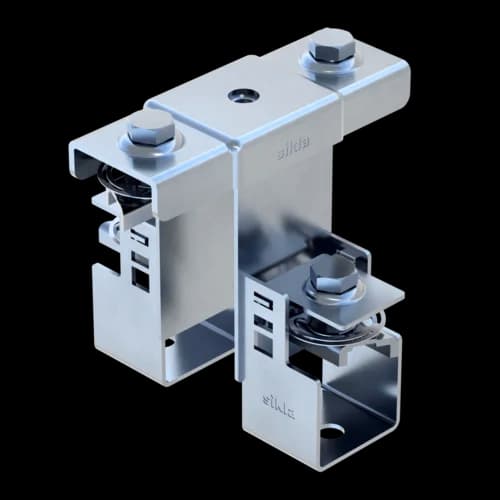

Cross Tee IR-M
Group: 1334

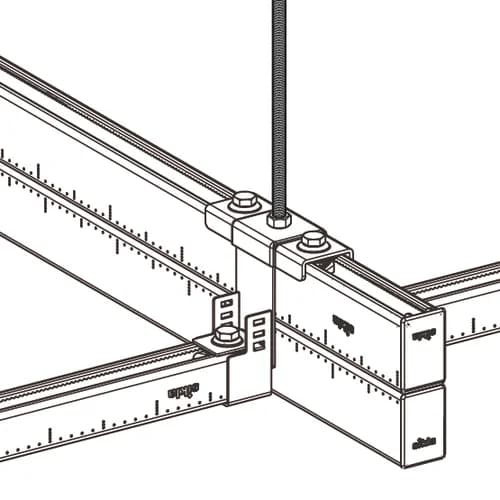

Cross Tee IR-M as the central connection point in the installation grid
Combination with Channel 41 and End Tee IR-E for complete grid, optionally with grid suspension IR for y-suspension
Overview of Types
General Information
The Cross Tee IR-M is used to create a cross connection for installation grids made of Channels 41. In combination with Channels 41 and the End Tee IR-E a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary. An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently. Saving time by means of Pressix CC-components. Flexible choice of Channels. Simple modificaton of End and Cross Tees.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |

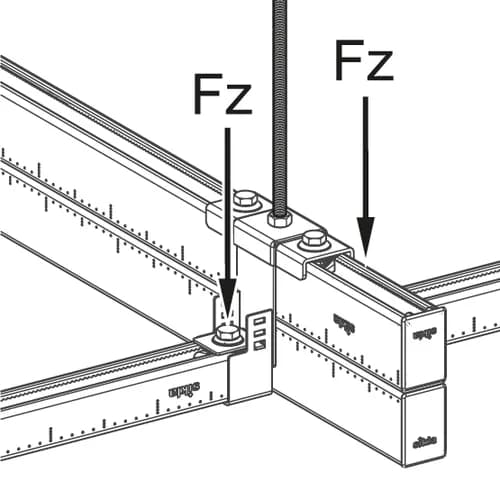

Load range
Type | -VZ,perm. |
IR-M 41/52D | 6,00 kN |
IR-M 41/62D | 6,00 kN |
Software
This product is available in the following software.
Installation
1. Mount both hooked feeder plates of the Cross Tee IR-M to the main runner.
2. Place the suspension holding bracket over both hooked feeder plates and tighten it.
3. Insert the cross strut section into the hooked feeder plates and fix it by means of the clamping plate, Speed Nut NT CC 41 and hexagon bolt.
Tightening torque: 10 Nm
Selection guide:
| Type | appropriate main runner | appropriate cross strut section |
|---|---|---|
| IR-M 41/52 D | MS 41/52 D | MS 41/41, 41/52, 41/62 |
| IR-M 41/62 D | MS 41/62 D | MS 41/41, 41/52, 41/62 |
