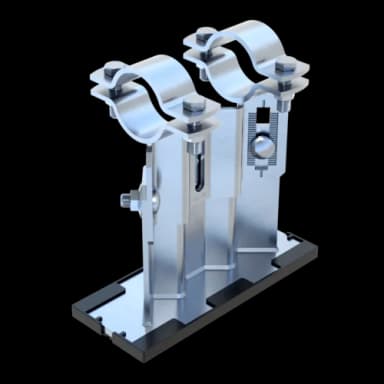

Height-adjustable, double-clamp pipe shoe with a delivery height of 200 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

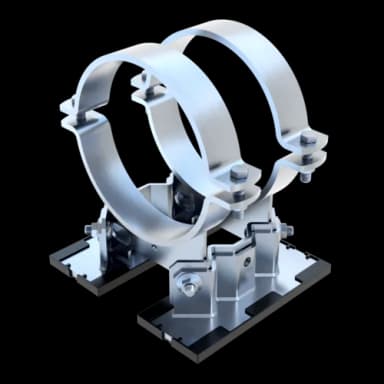

Height-adjustable, double-clamp pipe shoe with two bars and a delivery height of 90 mm. Height adjustment in 2.5 mm increments. Particularly suitable for sliding pipe supports on suitable surfaces. A minimum flange width of 80 mm is recommended when mounting on steel beams. Guide or fixed points can also be created by combining with other Sikla components.

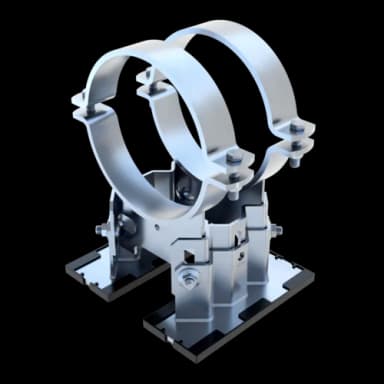

Height-adjustable, double-clamp pipe shoe with two bars and a delivery height of 150 mm. Height adjustment in steps of 2.5 mm. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created by combining with other Sikla components.

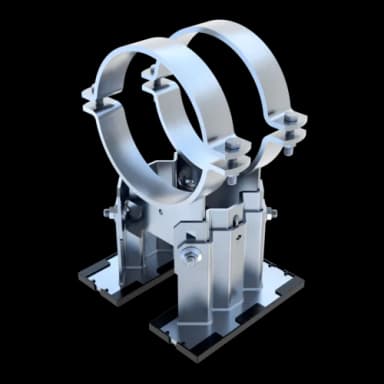

Height-adjustable, double-clamp pipe shoe with two bars and a delivery height of 200 mm. Height adjustment in steps of 2.5 mm. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created by combining with other Sikla components.

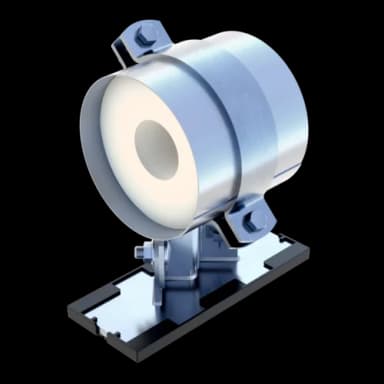

Pipe Shoe with insulation. With PUR insulation insert for pipes on suitable surfaces. Height-adjustable in steps of 2.5 mm. When resting on steel beams, a minimum flange width of 80 mm is recommended.

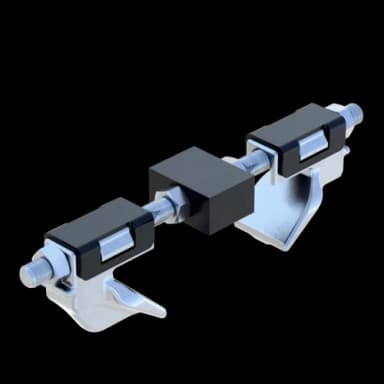

Serves as a slide bearing base for pipes of DN 15 up to DN 300, to be fixed on steel beams with flange widths of 80mm up to 300mm and max. flange thickness of 20mm.

The Rod Hanger Load Chain Assembly group connects components in the load chain with their counterparts, such as lugs, eye-plates and Pipe Clamp Stabil Form C LK.

Inlay for pipe clamps for galvanic separation (prevention of contact corrosion).

Sound absorption lining for steel straps and pipe clamps (also according to DIN 4109). Application up to +110°C.

Insulation insert for pipe clamps to prevent contact corrosion and provide thermal separation. Application range up to +230°C.

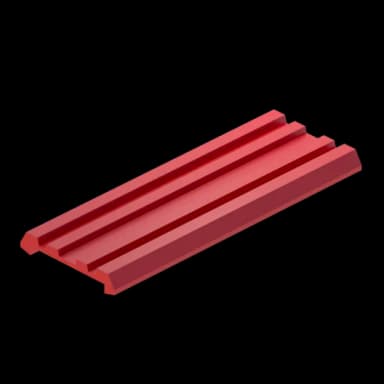

Sound absorption lining for steel straps and pipe clamps, also according to DIN 4109. Application up to +200°C (temporarily up to +300°C, see technical data).

For diffusion-proof installation of Sikla Chilled Water Fixed Point Clamp.

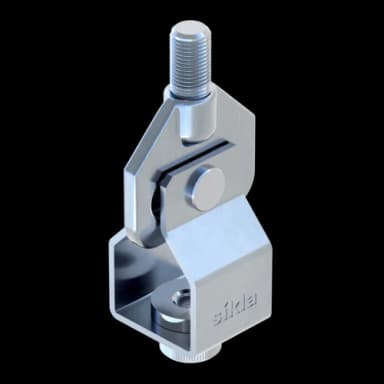

Height-adjustable suspension slide element for all mechanical services. Can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels. The slide roller located in the suspended section provides for smooth, jerk-free and silent sliding.

Suspension slide element which can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels. Pendular function allows for slight lateral movements. The slide roller located in the suspending section provides for smooth, jerk-free and silent sliding. Type LC-A is suitable for insulation thicknesses up to 25 mm.

Slide element for use in Sikla Channels MS 41. For single and, using a Tandem Connector, double mounting options. The sliding distance is determined by the length of the rail. Holding Brackets are to be used for securing the slide element. Alternatively, the Sikla Channel Holder SH may be used. Any option in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G may be realised. Various connection options with pipe clamps in the range between M12 and R1'. For these connection options, the corresponding Mounting Plate could be screwed directly with the slide element by means of bolts M10 x 20. Suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

Slide element for use in Sikla Channels MS 41. For single and, using a Tandem Connector, double mounting options. The sliding distance is determined by the length of the rail. Holding Brackets are to be used for securing the slide element. Alternatively, the Sikla Channel Holder SH may be used. Any option in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G may be realised. Various connection options with pipe clamps in the range between M12 and R1'. For these connection options, the corresponding Mounting Plate could be screwed directly with the slide element by means of bolts M10 x 20. Suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

Slide Set for mounting of small pipe lines with possible elongation of length. Space-saving and thus also to be used for smaller centre distances, especially in combination with pipe clamps Ratio S and LS. The stop at the skid avoids the pipe line from sliding and at the same time is a comfortable guide for rising pipes. Guiding corrugations guarantee the exact 90° arrangement and avoid the screwing up of the slide set.

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails.

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R1' using adapters (see Adapters AD f/f ss) Sound absorption by means of slide rails of glass fibre reinforced PA.

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails.

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R 1' using adapters (see Adapters AD f/f ss). Sound absorption by means of glass fibre reinforced PA.

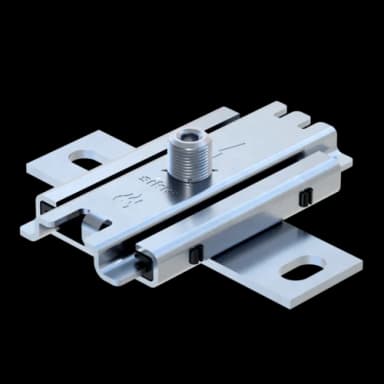

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails. When using the version fett ULTRAglide /fett the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

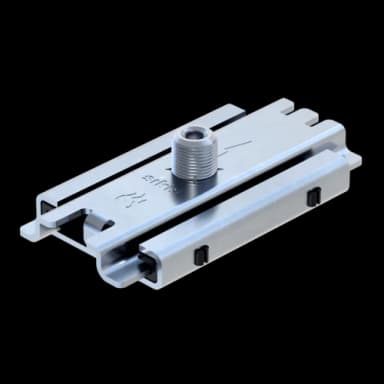

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails. When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails.
