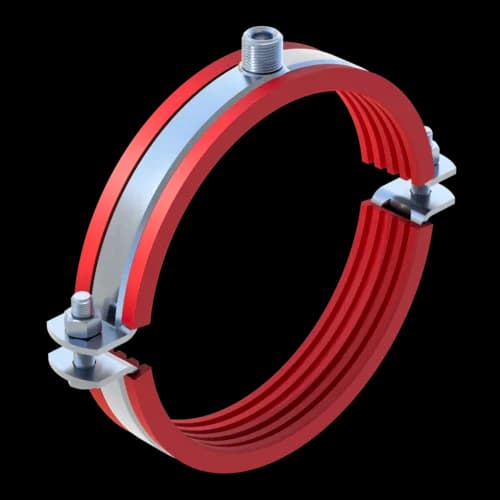

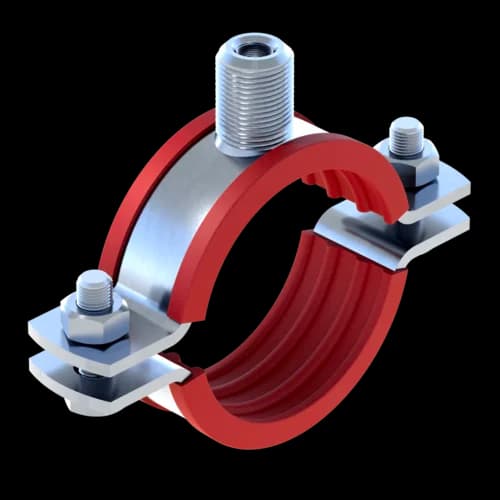

Stabil D-2G/-3G ss w/Silicone Lining
For the installation of pipes required for all M&E services in industrial, residential and public buildings.
With silicone sound absorption lining. Particularly suitable for soundproof pipe installation according to DIN 4109.
Scope of delivery
Two-piece pipe clamp with clamping bolts and nuts (supplied loose).
Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1" using an adapter.
| Max. adm.|
| Tightening torque|
|18 - 63||1,5 kN|| 3|
|74 - 114||2,0 kN|| 5|
|133 - 168||4,0 kN|| 10|
|198 - 219||6,0 kN||20|
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
| Pipe clamp|| Stainless steel A4|
| Sound absorption lining||Silicone, red (see chapter "Sound Absorption Products")|
Approvals / Conformity
| ||This product has been awared the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.|
