End Support WBD F100 HCP
1 Variant
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Guiding Bracket FW F 80 HCP
1 Variant
Element for modification of siMotec Sliding Pipe Shoes to Guided Pipe Shoes on siFramo F80 beam sections.
Guiding Bracket FW F100 - Z HCP
1 Variant
Using the Guiding Bracket FW F it's possible to guide Pipe Shoes with different plate thicknesses on siFramo F100 beam sections. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.
Mounting Plate GPL F 80 HCP
2 Variants
Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F80 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.
Pivot Joint GE F - ST F 80 HCP
1 Variant
A bracing element for single-armed cantilevers with the siFramo F80 support system on steel beams with flange widths between 80 and 300 mm, as well as for bracing frame structures. The pivot can be installed with angles from 25° to 155°.
Pivot Joint GE F100 HCP
1 Variant
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 100 and for the reinforcement of frame constructions. For type F 100 - F 80, a TP F 80 beam section is used for reinforcement. For type F 100 - F 100, a TP F 100 beam section is used. The angle a is continuously variable between 25° and 155°.
Pivot Joint GE F100 q HCP
1 Variant
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 100 and for the reinforcement of frame constructions. For type F 100 - F 80, a TP F 80 beam section is used for reinforcement. For type F 100 - F 100, a TP F 100 beam section is used. The angle a is continuously variable between 25° and 155°.
Profile Coupling PK F100 HCP
2 Variants
Internal splice connecting element for TP F 100 Beam Section, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.
Self Forming Screw FLS F
1 Variant
The Self Forming Screw FLS creates its own thread inside the wall of the siFramo pilot hole. During the screw-driving operation, the base steel is re-shaped and hardened to form an air-tight seal between the threads of the screw and the surrounding steel, making it exceptionally resistant to vibrational loosening and increasing fastening strength.
Slide Set GS F 80 2G HCP
1 Variant
Slide Set for single or twin-clamp connection designed to clutch the Beam Section F80 via 2 x Self Forming Screws FLS.
Slide Set GS F100 1G HCP
1 Variant
Heavy-duty Slide Set for single and twin-clamp connection to siFramo TP F 100 beam sections. 1/2' thread connection allows direct connection to pipe clamp Stabil I -1/2' by means of threaded tube without further adaption parts.
Support U-UB F 80
1 Variant
Insulation and surface protection pad to be used on demand when a pipes’ expansion and contraction occurs directly on the F80 section.
U Bolt Fastening UB F HCP
3 Variants
U Bolt Fastening to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.
U-Holder SB F 80 HCP
4 Variants
Pre-assembled component to clamp Beam Section F80, to the flange side of traditional steel sections.
Welding Adapter ASA F 80 HCP
1 Variant
Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.

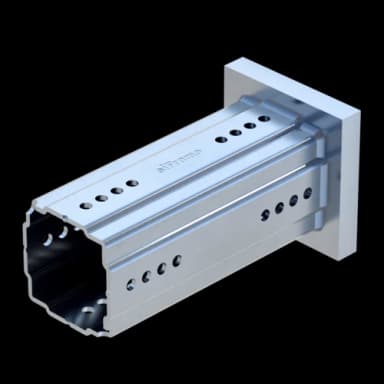

Welding Adapter ASA F100 HCP
2 Variants
Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.

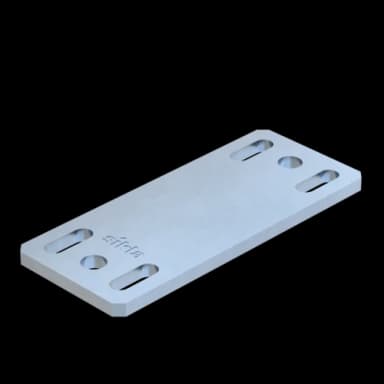

Welding Plate SPL F 80 HCP
1 Variant
Interface element to enable a welded connection of load chains, spring hangers etc. to Beam Section TP F. Our type 'SPL universal' enables a welded connection to primary steel with flange width up to 300 mm. At the same time it's possible to install type 'SPL universal' to Beam Section TP F if a larger installation surface is needed. The welding plate can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process.
Welding Plate SPL UNI HCP
1 Variant
Interface element to enable a welded connection of load chains, spring hangers etc. to Beam Section TP F. Our type 'SPL universal' enables a welded connection to primary steel with flange width up to 300 mm. At the same time it's possible to install type 'SPL universal' to Beam Section TP F if a larger installation surface is needed. The welding plate can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process.
