End Support WBD F100 HCP
Group: A821
Plug-in component for creating a square end plate at the open end of Beam Section TP F 100 or Beam Bracket/Cantilever Bracket AK F 100
Variation 'T' with octagonal insert allows full utilisation of the beam section within the space required by the End Support WBD
Overview of Types
General Information
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
WBD-4KT 80/120-F100 HCP | 39,40 kN | 39,40 kN | 58,90 kN | 58,90 kN | 58,90 kN | 58,90 kN |
Type | -MX,perm. | MX,perm. | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
WBD-4KT 80/120-F100 HCP | 7,1 kNm | 7,1 kNm | 8,5 kNm | 8,50 kNm | 8,5 kNm | 8,5 kNm |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation
Depending on the situation, different options are recommended:
Types F100:
a) Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert
b) To traditional steel beams between 80 – 310 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert
c)To Sikla Simotec steel beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required
The Beam Section TP F 100 connected to the End Support WBD F 100 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary. The permissible distance between base plate WBD and profile must not exceed 30 mm.
Types 100/160
a) Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert.
b) To traditional steel beams between 80 – 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert.
The Beam Section TP F 100/160 connected to the End Support WBD F 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.
Base plate finish:
| Type | Base plate finish |
|---|---|

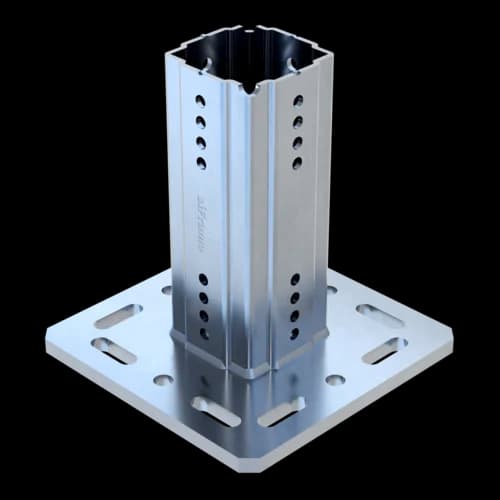

| WBD F 100-80/120 | flat |

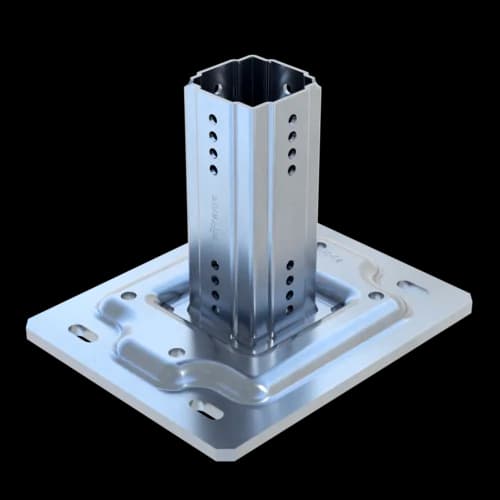

| WBD-P F 100-121/160 | corrugated |

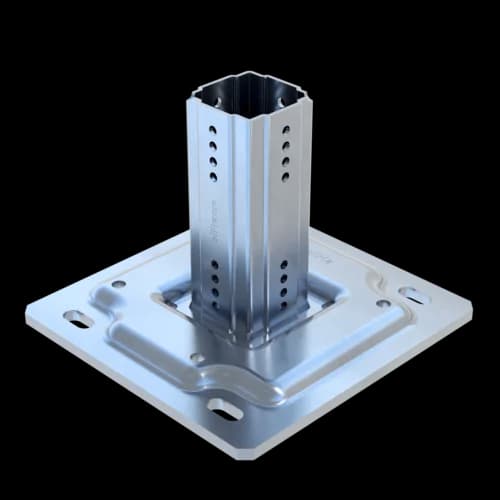

| WBD-P F 100-161/200 | corrugated |
| WBD-P F 100-201/310 | corrugated |
| WBD F 100-T | flat |

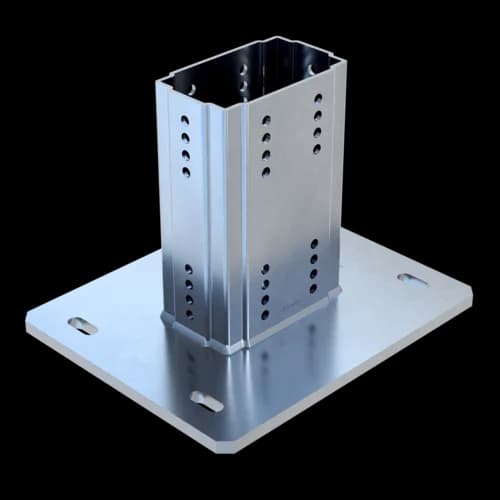

| WBD F 100/160-121/160 | flat |

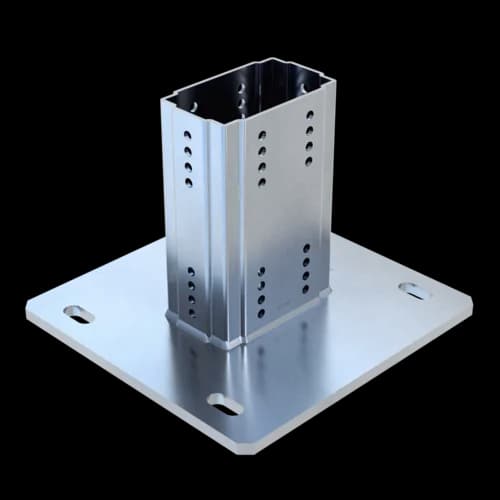

| WBD F 100/160-161/200 | flat |

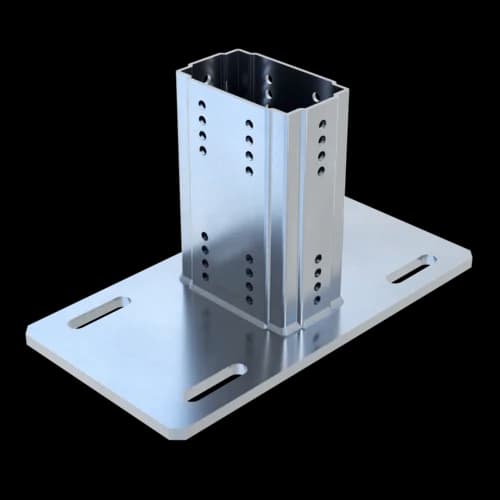

| WBD F 100/160-201/300 | flat |
