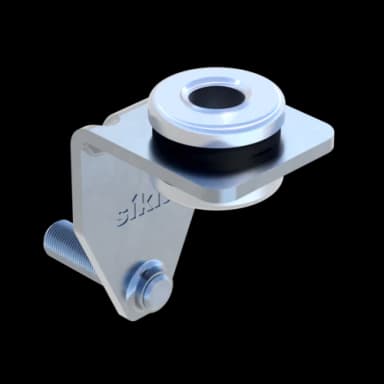

Ducting Angle for a direct installation to the flange of rectangular ventilation ducts. Due to this external connection it's not necessary to penetrate the duct, therefore flow losses do not occur. In addition there are no leakages and flow noises. No disturbing screw tips interfere with cleaning operations. The Ductings Angles LUW F exceed the demands of VDI Standard 6022 (Hygiene requriements for ductings). Type LUW SF is suitable for soundproof duct installations according to DIN 4109. The slot allows adjustment facilities to compensate drill hole differences and construction tolerances.

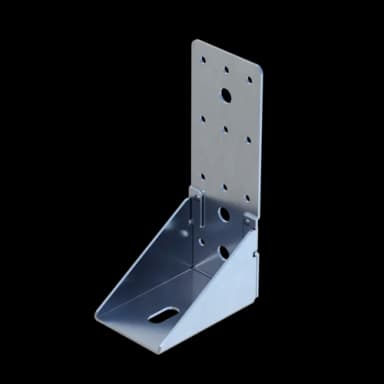

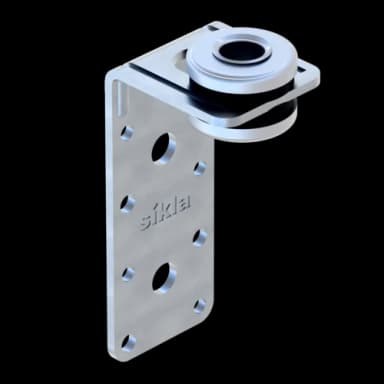

Mounting element for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types SL and SZ allow for soundproof installation, also according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound when using versions SL and SZ.

Mounting element for rectangular ducts -even for outdoor areas- installed directly under the ceiling, or for suspended installation when using a threaded rod. For soundproof installation according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound.

Mounting element for rectangular, particularly for vertically running ducts. In combination with Sound Absorber SDE 1 suitable for soundproof fixing of ducts according to DIN 4109.

Mounting element for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod. Types SL and SZ allow for soundproof installation, also according to DIN 4109. The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound when using versions SL and SZ.

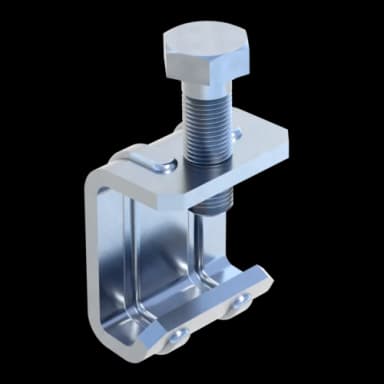

For connecting formed duct parts. When tightening the Bracket, the flanges of the duct parts are pressed against each other. The ducting bracket is suitable for ducts with flange widths of 20 mm, 30 mm and 40 mm.

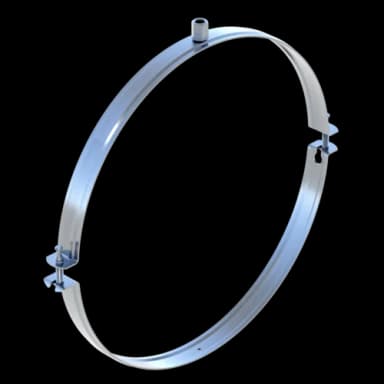

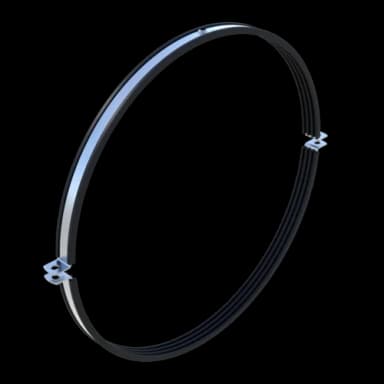

Ducting Clamp designed for installing spiral-seam ducts according to DIN 24145 for industrial ventilation systems.

Two-piece pipe clamp for simple installation of spiral-seam ducts.

Two-piece pipe clamp for simple installation of spiral-seam ducts. Suitable for soundproof installation according to DIN 4109.

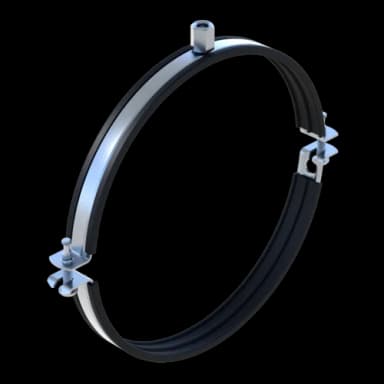

Designed for installing spiral-seam ducts for industrial ventilation systems (according to DIN 24145). For soundproof installation of pipes (according to DIN 4109).

Two-piece pipe clamp for simple installation of spiral-seam ducts. Suitable for soundproof installation according to DIN 4109.

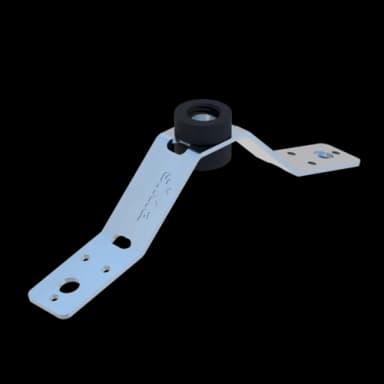

For quick and safe soundproof mounting of ducts either close to a ceiling, or for suspended installation when using a threaded rod. The bending points are punched, ensuring easy and exact adjustment to the pipe diameter. Suitable if soundproof installation according to DIN 4109 is demanded.

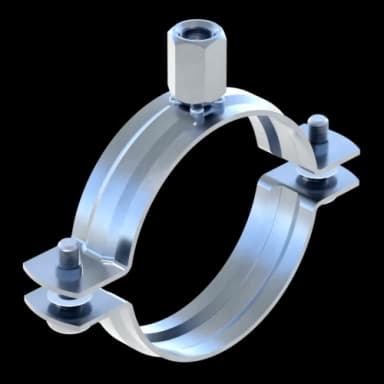

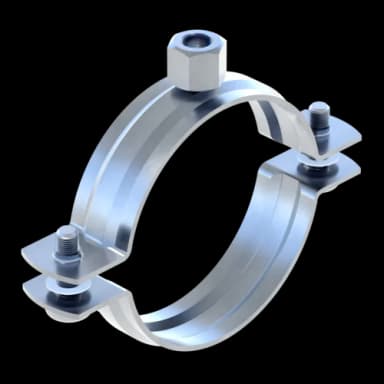

Two-piece pipe clamp with double thread connection (M8/M10) for the installation of pipelines.

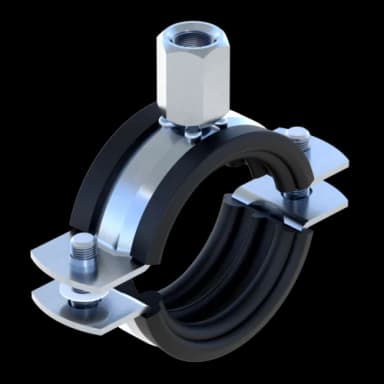

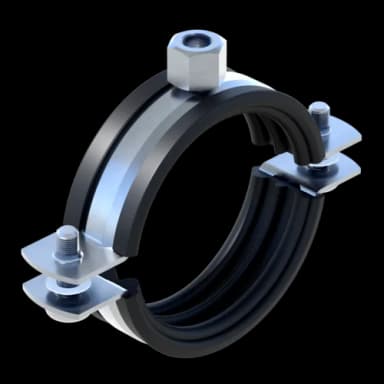

Two-piece pipe clamp with double thread connection (M8/M10) and sound absorption lining for the installation of pipelines. Applicable for sound-absorbed installations according to DIN 4109 specifications.

Two-piece clamp with thread connection M8 or M10 for the installation of pipelines.

Two-piece pipe clamp with thread connection M8 or M10 and sound absorption lining for the installation of pipelines.

Connecting component for the direct attachment of rod hanger assemblies to beam sections with a flange width 80-99mm. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

To be used for Fixed Point installations in combination with Mounting Kits. For completion a Mounting Kit (with or without sound absorption) and 4 braces (Sikla threaded tubes or rods) are needed. For professional dimensioning of these components according to fixed point loads (up to 25 kN with sound absorption or up to 35 kN without sound absorption) our staff members give advice. The symetric construction enables absorption of axial loads in both directions. The centrically welded M16 nut offers further connection possibilities.

Modification of siMotec Sliding Pipe Shoes to Fixed Point Pipe Shoes on steel beams with flange widths from 80 to 300 mm.

Fixed Point for attachment of steel or stainless steel pipes of DN 15 up to DN 300 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm. From DN 65 onwards, the design of the assembly changes.

Element for extending siMotec Pipe Shoes to Guided Pipe Shoes on stell beams with flange widths from 80-300 mm.

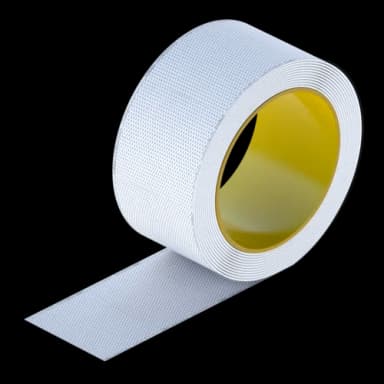

Inlay for pipe clamps for thermic and galvanic separation (prevention of contact corrosion). The Glass Fabric Tape is classified in the hydrolytic class I (best class) according to DIN 12111 regarding resistance to water. So it has an excellent resistance to acid and neutral solutions.

Guided Support for attachment of steel or stainless steel pipes of DN 15 up to DN 300 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm. From DN 65 onwards, the design of the assembly changes.

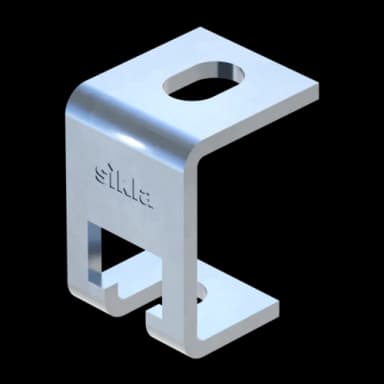

Height adjustment unit for suspended pipelines and components, providing for accurate pipe laying and compensation of constructional building tolerances. Facilitates mounting and improves mounting efficiency on site.
