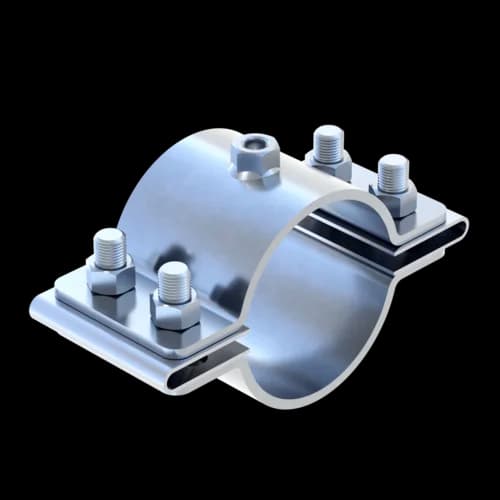

Fixed Point Clamp FS
Group: 1380
For fixed point installations in combination with mounting kits
Absorbs axial loads in both directions thanks to symmetric construction
Mounting kit and braces required; dimensioning advice available for loads up to 35 kN
Overview of Types
General Information
To be used for Fixed Point installations in combination with Mounting Kits. For completion a Mounting Kit (with or without sound absorption) and 4 braces (Sikla threaded tubes or rods) are needed. For professional dimensioning of these components according to fixed point loads (up to 25 kN with sound absorption or up to 35 kN without sound absorption) our staff members give advice. The symetric construction enables absorption of axial loads in both directions. The centrically welded M16 nut offers further connection possibilities.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Software
This product is available in the following software.
Installation
Tighten clamping bolts equally with the torque M as mentioned in the table.
Note: Tightening torque for combination FP clamp with steel pipe DIN EN 10220 / normal wall thickness. For pipes with smaller wall thickness or other material, the values have to be reduced.
| Type | Tightening torque |
|---|---|
| 21,3 ... 48,3 | 50 Nm |
| 57 mm ... 88,9 | 80 Nm |
| 108 mm ... 521 mm | 100 Nm |
