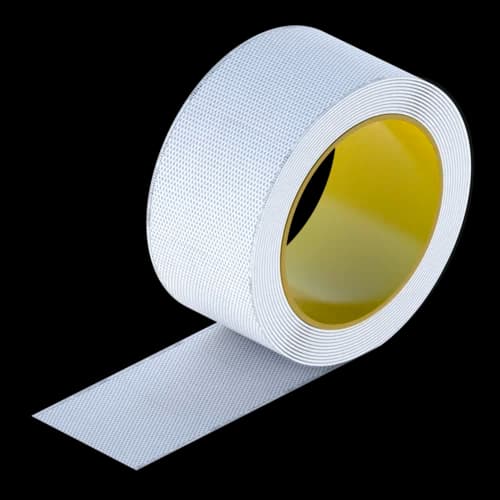

Glass Fabric Tape GSK

Group: 1291

Inlay for pipe clamps providing thermal and galvanic separation to prevent contact corrosion

Glass fabric tape classified as hydrolytic class I according to DIN 12111 for water resistance

Excellent resistance to acid and neutral solutions

Select a Type

Overview of Types
General Information
Documents

Overview of Types

General Information

Inlay for pipe clamps for thermic and galvanic separation (prevention of contact corrosion). The Glass Fabric Tape is classified in the hydrolytic class I (best class) according to DIN 12111 regarding resistance to water. So it has an excellent resistance to acid and neutral solutions.

Technical specifications

Permissible long-term temperature

500 °C

Resistant to:

oils, grease, solvents, organic acid

Tensile Resistance

3.700,00 N/mm²

Bulk Density

2,60 g/cm³

Software

This product is available in the following software.

Documents

Datasheets / Safety Data Sheets

Glass Fabric Tape – Safety Data Sheet
PDF (1.05MB)

Info	Type	Weight	Quantity	Part number
	GSK-G 30 X 2 X 10M	0,043 kg/m	10 m	114865

	GSK-G 40 X 2 X 10M	0,058 kg/m	10 m	114866

	GSK-G 50 X 2 X 10M	0,073 kg/m	10 m	114867

	GSK-G 60 X 2 X 10M	0,085 kg/m	10 m	114868

	GSK-G 70 X 2 X 10M	0,098 kg/m	10 m	114869

	GSK-G 80 X 2 X 10M	0,11 kg/m	10 m	800284

Info	Type	Weight	Quantity	Part number
	GSK-G 30 X 2 X 10M	0,043 kg/m	10 m	114865

	GSK-G 40 X 2 X 10M	0,058 kg/m	10 m	114866

	GSK-G 50 X 2 X 10M	0,073 kg/m	10 m	114867

	GSK-G 60 X 2 X 10M	0,085 kg/m	10 m	114868

	GSK-G 70 X 2 X 10M	0,098 kg/m	10 m	114869

	GSK-G 80 X 2 X 10M	0,11 kg/m	10 m	800284
