Pipe Shoes

Guided Support FR - H 20 (DN 15 - 50)

Application

Guided Support for attachment of steel or stainless steel pipes of DN 15 up to DN 50 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm.

Scope of delivery

Preassembled Guided Support including contact corrosion protection by means of a U-bolt sheath and slide bearers. U-bolt with welded-on semi-washers and 2 hex nuts to secure position.

Guided Support set contains:

2 clamping hooks with slide bearers
1 slide bar
1 connecting rod M10
1 U-Bolt fixing plate
4 nuts M10

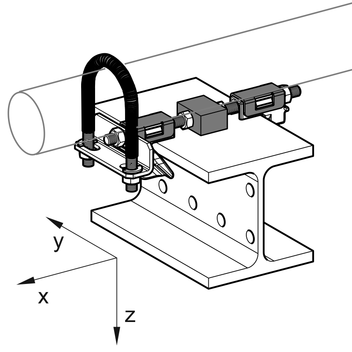

Installation

Position the preassembled clamping hooks onto the beam flange and tighten the nuts (to 10 Nm). For beam width < 100mm both nuts of the PA bearing block in the middle have to be removed. Fasten U-bolt to U-Bolt fixing plate by means of the included nuts (to 15 Nm) The pipe slides directly on the PA bearing blocks. Axial guiding of the pipe is ensured by the U-bolt.

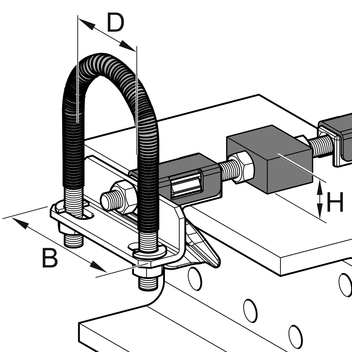

Technical Data

DN
D
[mm]
H
[mm]
B
[mm]
15 22 20 72
20 27 20 72
25 34 20 72
32 42 20 97
40 48 20 97
50 60 20 97

Type
for flange width
[mm]
80/120 80 - 120
140/160 121 - 160
180/220 161 - 220
240/260 221 - 260
280/300 261 - 300

Material:
U-bolt:
Steel, HCP
U-bolt sheath:
Polyamide 6.0, free of halogens
Sheet metal parts:
Steel, HCP
Rod, nuts:
Steel, HCP
PA block:
Polyamide 6.0, 30 % glass fibre reinforced, black
Temperature range:
-20 to +130° C (at the PA blocks and shrinking tube)

* in stock

TypeW
[kg]
Quantity
[pack]
Part
number
FR - H 20 DN 15 - 80/1200.910 113658
FR - H 20 DN 15 - 140/1601.01 113659
FR - H 20 DN 15 - 180/2201.01 113660
FR - H 20 DN 15 - 240/2601.11 113662
FR - H 20 DN 15 - 280/3001.11 113663
FR - H 20 DN 20 - 80/1200.910 113664
FR - H 20 DN 20 - 140/1601.01 113665
FR - H 20 DN 20 - 180/2201.01 113666
FR - H 20 DN 20 - 240/2601.11 113667
FR - H 20 DN 20 - 280/3001.11 113668
FR - H 20 DN 25 - 80/120 *0.910 113669
FR - H 20 DN 25 - 140/1601.01 113671
FR - H 20 DN 25 - 180/2201.01 113672
FR - H 20 DN 25 - 240/2601.11 113673
FR - H 20 DN 25 - 280/3001.11 113674
FR - H 20 DN 32 - 80/1200.910 113675
FR - H 20 DN 32 - 140/1601.01 113676
FR - H 20 DN 32 - 180/2201.11 113677
FR - H 20 DN 32 - 240/2601.11 113678
FR - H 20 DN 32 - 280/3001.21 113679
FR - H 20 DN 40 - 80/1200.910 113680
FR - H 20 DN 40 - 140/1601.01 113681
FR - H 20 DN 40 - 180/2201.11 113682
FR - H 20 DN 40 - 240/2601.11 113683
FR - H 20 DN 40 - 280/3001.21 113684
FR - H 20 DN 50 - 80/120 *1.010 113685
FR - H 20 DN 50 - 140/1601.11 113686
FR - H 20 DN 50 - 180/2201.11 113687
FR - H 20 DN 50 - 240/2601.21 113688
FR - H 20 DN 50 - 280/3001.21 113690
