Application

Universal connection for attachment to non-horizontal components.

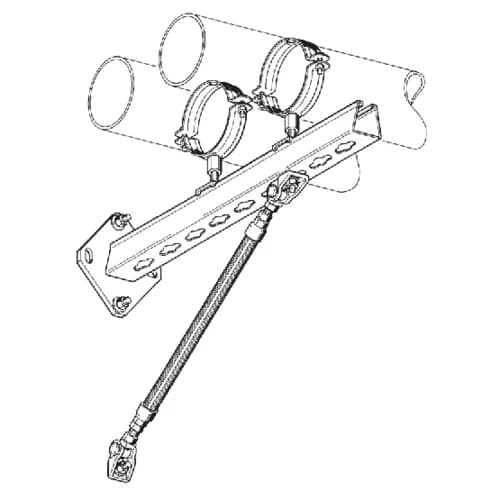

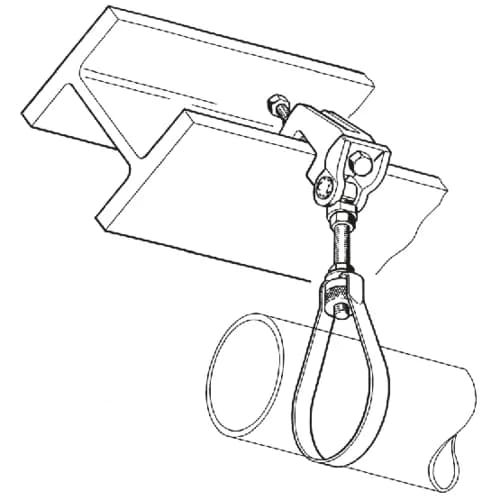

May be fixed directly to building surfaces, Beam Clamps, channels, etc. Typical uses would include easy on-site manufacture of various tie rod assemblies to support brackets, or reinforcement struts for sliding and fixed point applications (UG FP types are specifically designed for assembly for pipe clamp wings for fixed point constructions).

  • Infinitely variable angle adjustment
  • Length and height adjustment via rotation of the grub screw in the threaded pivot head
  • Securely retained threaded pivot head
  • Secure attachment of nut on the adapter plate.

Scope of delivery

With adapter plate and locking nut.

Installation

Screw the grub screw completely into the pivot head (visual control).
Fix the adjusted angle by tightening the supplied nut against the adapter plate.

Technical Data

Type
Working load
[kN]
Adapter plate
ø DA [mm]
Nut
UG M8 5.8 10.5 Flange nut
UG M10 8.0 10.5 Flange nut
UG M12 13.0 16.5 Flange nut
UG M16 13.0 16.5 Hexagon nut

UG FP M12 10.0 16.5 Flange nut
UG FP M16 10.0 16.5 Hexagon nut

Adm. load Fzzul in case of fire

Type
FWD 30
[kN]
FWD 60
[kN]
FWD 90
[kN]
FWD 120
[kN]
M8 0.60 0.45 0.34 0.26
M10 0.60 0.60 0.54 0.42
M12 1.60 1.03 0.79 0.61
M16 1.60 1.60 1.47 1.13

Material:
Steel, electro-galvanised (versions M8 and M10)

Malleable cast iron, electro-galvanised (versions M12 and M16)

Approvals / Conformity

VdS Approval G4980055 for types UG M8 to UG M16.

Universal Joint UG - G4980055 VdS PDF | 966.4 KB

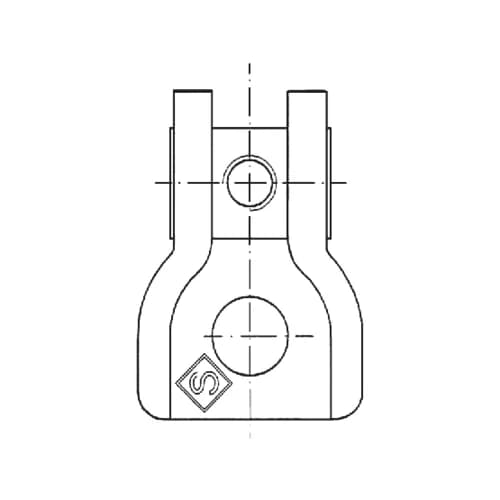

TypePivot
head
A
[mm]
B
[mm]
ø D
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
UG M8M 8264010.5510.1250 198636
UG M10M10264010.5510.1250 198643
UG M12M12335017.0710.3725 158075
UG M16M16335017.0710.3625 158084

UG FP M12M12335017.0710.3225 158093
UG FP M16M16335017.0710.3125 158109
