M16

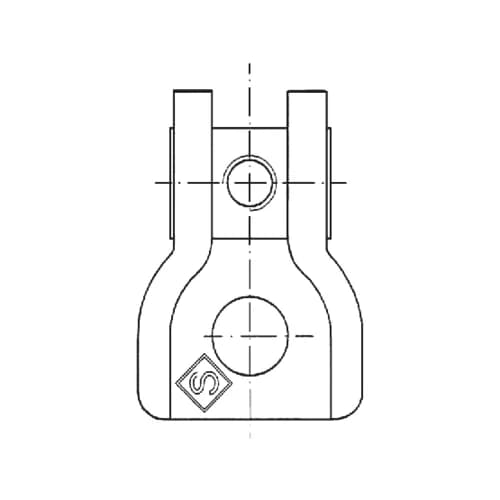

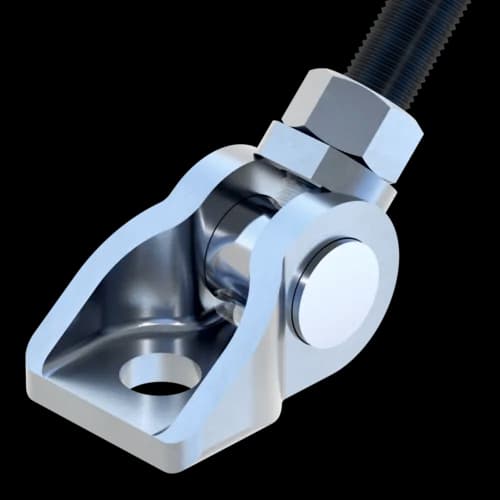

Universal Joint UG M16
Group: 1342
Part number 158084
Universal connection allowes for continuous angle adjustment, ideal for inclined components.

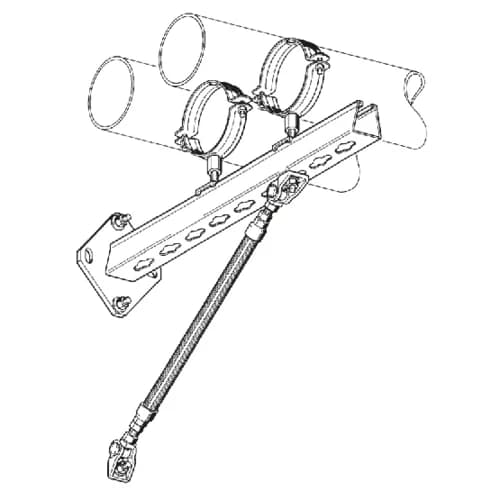

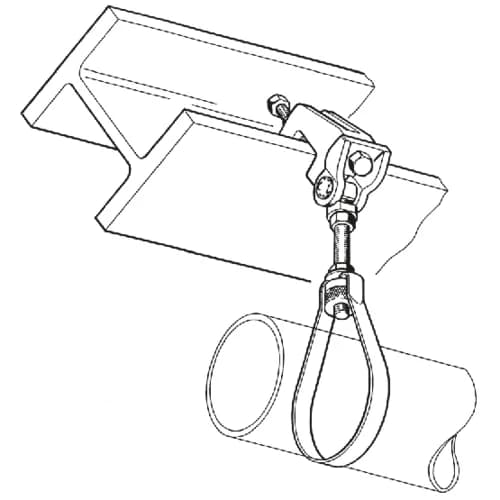

Mounting directly to the building surfaces, Beam Clamps, channels or as a diagonal support on brackets

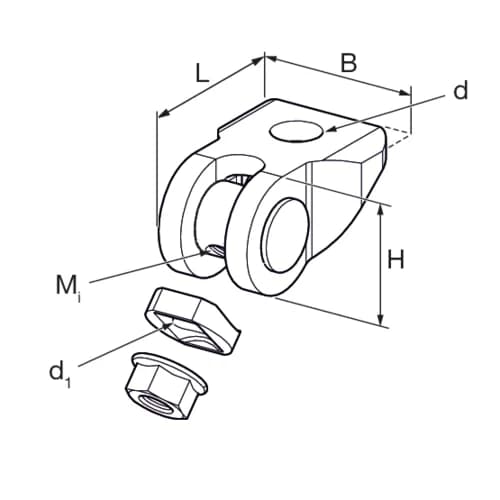

Technical Data
B | 50 mm |
d | 17 mm |
d1 | 16,5 mm |
L | 71 mm |
Mi | M16 |
With adapter plate and locking nut.
Load range
-VZ,perm. | 13,00 kN |
FRP 30 | 1,6 kN |
FRP 60 | 1,6 kN |
FRP 90 | 1,47 kN |
FRP 120 | 1,13 kN |
Technical specifications
Material base body | M8-M10: steelM12-M16: cast iron |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
VdS Approval G4980055 for types UG M8 to UG M16.
Installation
Screw the grub screw completely into the pivot head (visual control).
Fix the adjusted angle by tightening the supplied nut against the adapter plate.
Documents
Approvals / VdS
- FM Approval - Sikla Universal Joint UG - G4980055
PDF (0.94MB)
