Application

Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams).

  • The combination with a Universal Joint provides for vertically aligned attachment to inclined beams.
  • Can serve as single mounting element for installing crossbars and for fixing cantilever structures.
  • Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels of the 41 series.

Scope of delivery

Pre-assembled with clamping bolt and locking nut.

Installation

Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting structures. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
For installation near a cutting edge of a channel, an additional Holding Bracket HK 41 has to be mounted.

Note:
Respect relevant mounting instructions!

For FM-construction use thread ≥ M10 only!

Technical Data

The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.

Working load: Type TCS 0: 3.5 kN
  Type TCS 1: 5.0 kN
  Type TCS 2: 8.5 kN
Material:
Body in cast-iron, electro-galvanised and clamping bolts in steel, class 8.8., electro-galvanised

Approvals / Compliance

Approved and accepted by VdS and FM for use with stationary fire extinguishing systems.
TCS O LC Approval: G4950065 and G4950066 (erected mounting with M10 up to a maximum height hmax = 150 mm and up DN 50 only). For further types and different application fields: G4820023; G4830054; G4800039/ ...45; G4990027.

Beam Clamp TCS 0LC - G4950065 VdS PDF | 75.0 KB Beam Clamp TCS 0LC - G4950066 VdS PDF | 74.4 KB Beam Clamp TCS1 M10/M10 - G4820023 VdS PDF | 349.3 KB Beam Clamp TCS 0 - 4830054 VdS PDF | 207.0 KB Beam Clamp TCS1 - G4800039 VdS PDF | 155.5 KB Beam Clamp TCS with Safety Strap - G4800040 VdS PDF | 153.4 KB Beam Clamp TCS2 with Safety Strap - G4800042 VdS PDF | 153.9 KB Beam Clamp TCS - G4800043 VdS PDF | 256.7 KB Beam Clamp TCS - Double Support - G4800044 VdS PDF | 134.7 KB Beam Clamp TCS - Projecting Crossbar - G4800045 VdS PDF | 131.8 KB Beam Clamp TCS1 M10-M12 - G4990027 VdS PDF | 108.7 KB FM - Beam Clamp TCS PDF | 401.3 KB

TypeConnection
[fore/aft]
Clamping range on
parallel flange
[mm]
W
[kg]
Quantity
[pack]
Part
number

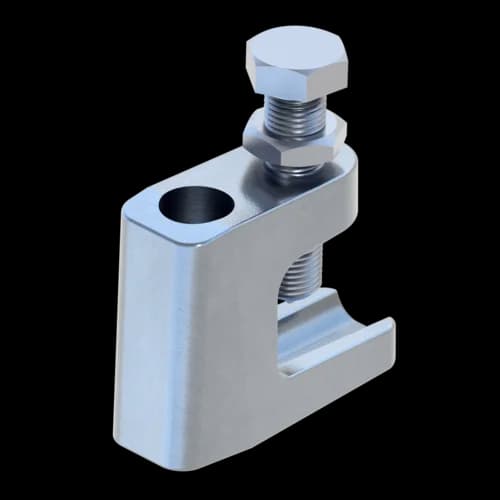

TCS 0 LCø 10.5180.1050 156648
TCS 0 M8/M8M8/ M8220.1450 178283

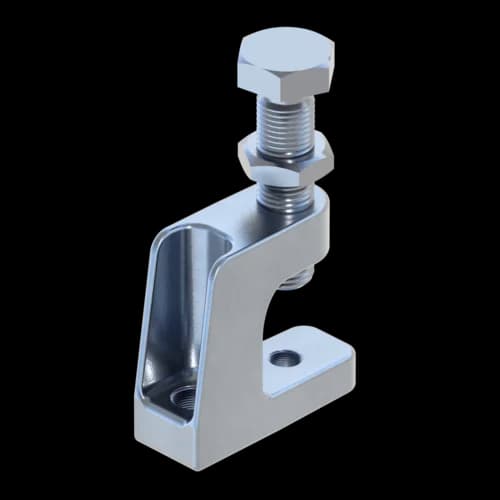

TCS 0 M8/M10M8/M10220.1450 174206
TCS 1 M10/M8M10/M 8260.2150 116770
TCS 1 M10/M10M10/M10260.2150 116150
TCS 1 M10/M12M10/M12260.2250 167332

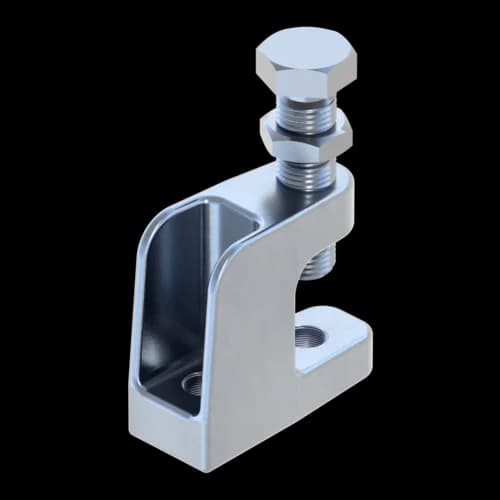

TCS 2 M12/M12M12/M12260.2825 174224
TCS 2 M12/M16M12/M16260.2725 174215
